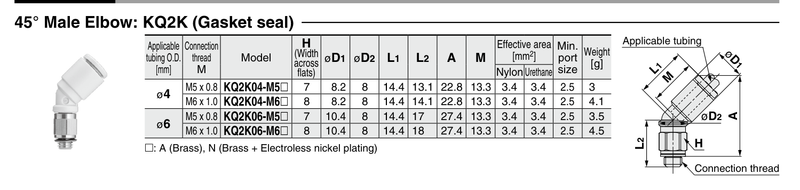

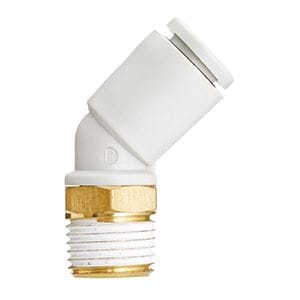

KQ2K04-M6N SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 4 mm OD Tube x M6 Male

The SMC KQ2K04-M6N is a KQ2 series 45 degree male elbow. It connects 4 mm OD tubing to an M6 x 1.0 male thread. Use to connect a tube to a female thread at a 45 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
