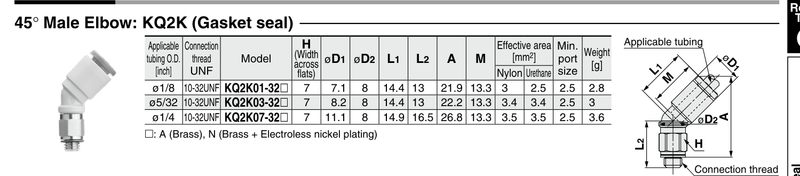

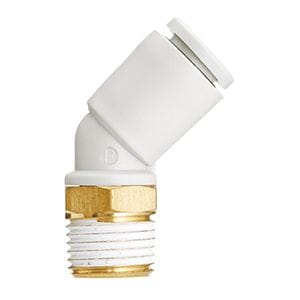

KQ2K01-32A SMC KQ2 One-Touch Fitting - 45 Degree Male Elbow, 1/8 in OD Tube x 10-32UNF Male

The SMC KQ2K01-32A is a KQ2 series 45 degree male elbow. It connects 1/8 in OD tubing to a 10-32UNF male thread. Use to connect a tube to a female thread at a 45 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
