KQ2H09-00A SMC KQ2 One-Touch Fitting - Straight Union, 5/16 in OD Tube

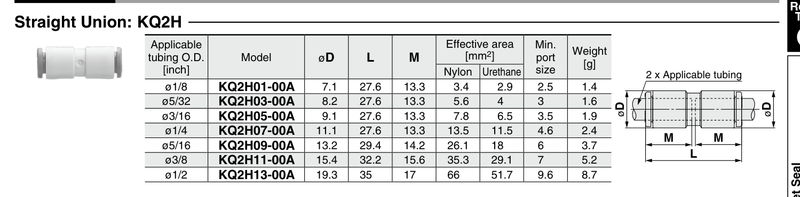

The SMC KQ2H09-00A is a KQ2 series straight union. It connects 5/16 in OD tubing. Use to join two tubes of the same size in a straight line.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
