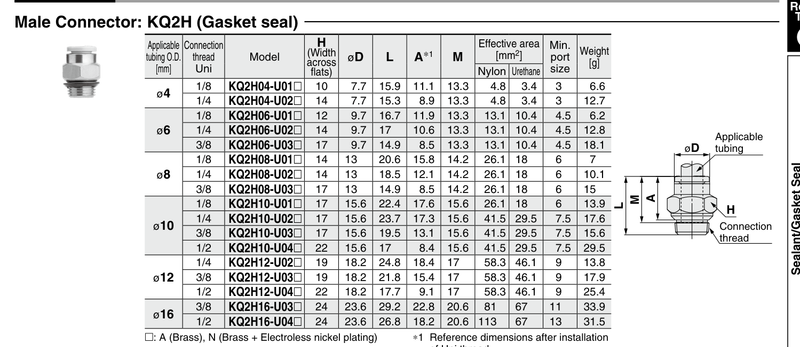

KQ2H08-U03A SMC KQ2 One-Touch Fitting - Male Connector, 8 mm OD Tube x Uni 3/8 Male

The SMC KQ2H08-U03A is a KQ2 series male connector. It connects 8 mm OD tubing to a Uni 3/8 male thread. Use to connect a tube to a female thread with a straight connection.

The Uni thread installs into Rc, G, NPT and NPTF female ports, so one part covers all four. It seals on a captive gasket that seats against the chamfer at the mouth of the port rather than on the thread flanks, so the mating port must present a flat or chamfered face at the thread entry. No thread sealant is required. Replacement gaskets are ordered separately as KQG.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
