Details

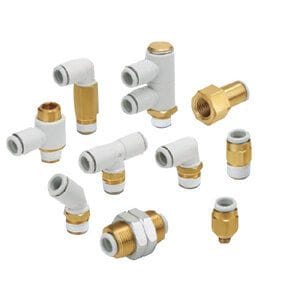

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
- Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
- Fluid: air, water
- Operating pressure range: -100kPa~1MPa
- Release collar allows easy removal of tubing without causing damage to the tube
- This product is not intended for use in potable water systems
-
Additional Information

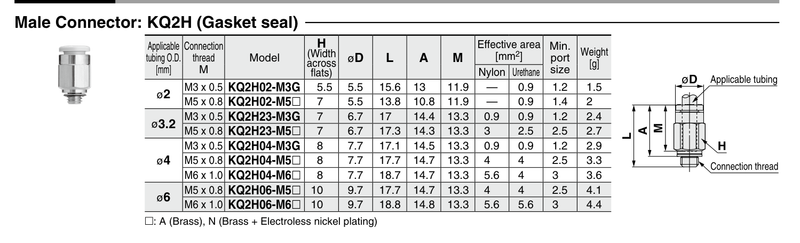

Part Number KQ2H04-M6A Brand SMC Corporation Of America Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 11.000000000 Lead Days Product Type Fitting Fluid Power Type Pneumatic Material Brass Thread Size M6 (Screw Connection M5 x 1.0) Tube OD 4mm (5/32") Fitting Type (H) Male Connector -
