KQ2H04-M5A SMC KQ2 One-touch Fitting

Sku#: KQ2H04-M5A

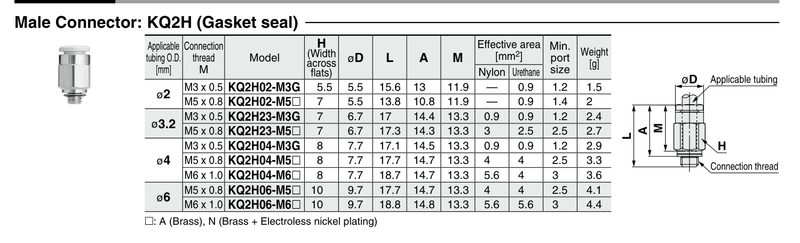

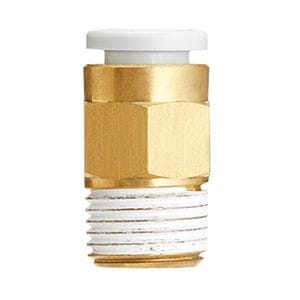

The SMC KQ2H04-M5A one-touch fitting is a male connector fitting for tubing with a 4mm O.D. The port size is M5 and the thread material is brass.

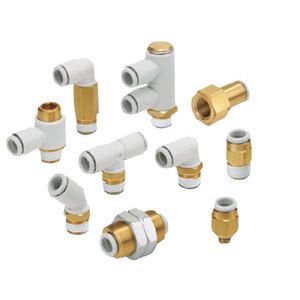

The SMC KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa.  The SMC KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

  • Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
  • Fluid: air, water
  • Operating pressure range: -100kPa~1MPa
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This product is not intended for use in potable water systems
