KQ2H03-34AS SMC KQ2 One-Touch Fitting - Male Connector, 5/32 in OD Tube x 1/8 NPT Male

Sku#: KQ2H03-34AS

Contact us for availability.
SMC KQ2 male connector. Connects 5/32 in OD tubing to a 1/8 NPT male thread. Brass, thread sealant pre-applied.

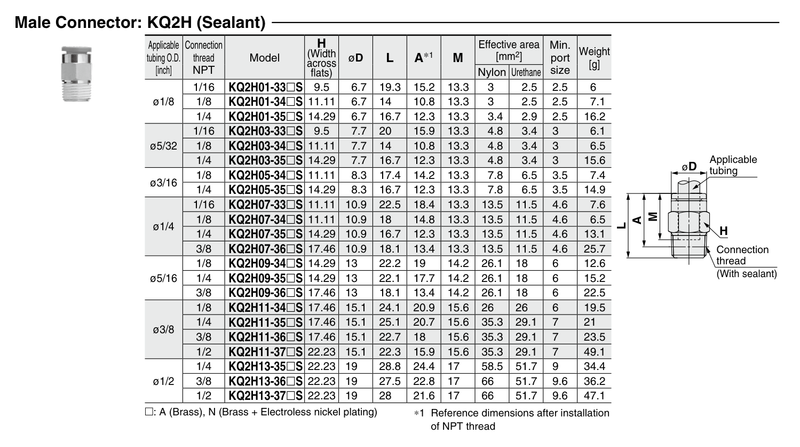

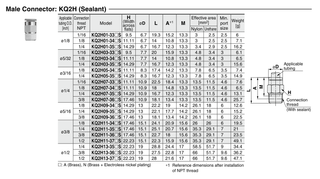

The SMC KQ2H03-34AS is a KQ2 series male connector. It connects 5/32 in OD tubing to a 1/8 NPT male thread. Use to connect a tube to a female thread with a straight connection.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
