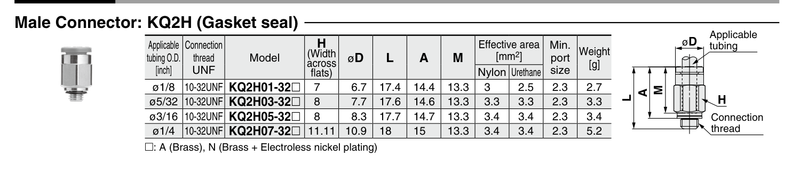

KQ2H03-32A SMC KQ2 One-Touch Fitting - Male Connector, 5/32 in OD Tube x 10-32UNF Male

Sku#: KQ2H03-32A

Contact us for availability.
SMC KQ2 male connector. Connects 5/32 in OD tubing to a 10-32UNF male thread. Brass.

The SMC KQ2H03-32A is a KQ2 series male connector. It connects 5/32 in OD tubing to a 10-32UNF male thread. Use to connect a tube to a female thread with a straight connection.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
