KQ2H01-32N SMC KQ2 One-Touch Fitting - Male Connector, 1/8 in OD Tube x 10-32UNF Male

Sku#: KQ2H01-32N

Contact us for availability.

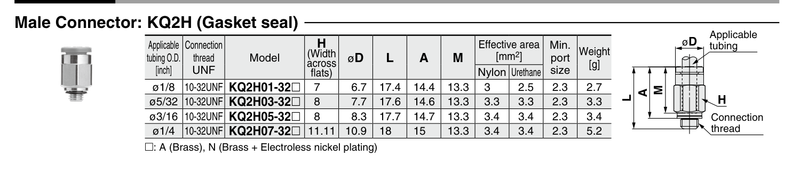

SMC KQ2 male connector. Connects 1/8 in OD tubing to a 10-32UNF male thread. Nickel-plated brass.

The SMC KQ2H01-32N is a KQ2 series male connector. It connects 1/8 in OD tubing to a 10-32UNF male thread. Use to connect a tube to a female thread with a straight connection.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
