KQ2F10-G02A SMC KQ2 One-Touch Fitting - Female Connector, 10 mm OD Tube x G 1/4 Female

Sku#: KQ2F10-G02A

Contact us for availability.
SMC KQ2 female connector. Connects 10 mm OD tubing to a G 1/4 female thread. Brass.

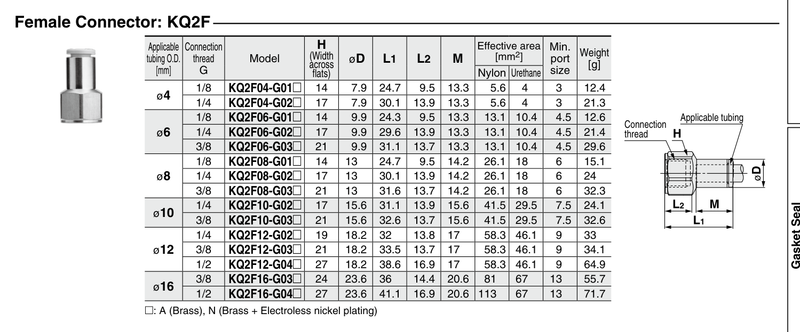

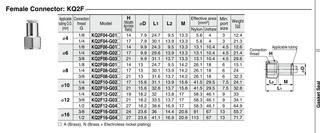

The SMC KQ2F10-G02A is a KQ2 series female connector. It connects 10 mm OD tubing to a G 1/4 female thread. Use to connect a tube to a male thread with a straight connection.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
