KQ2F09-34N SMC KQ2 One-Touch Fitting - Female Connector, 5/16 in OD Tube x 1/8 NPT Female

Sku#: KQ2F09-34N

Contact us for availability.

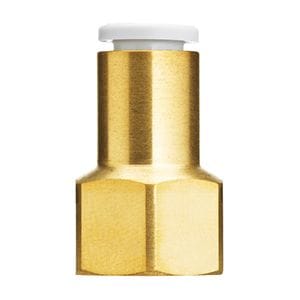

SMC KQ2 female connector. Connects 5/16 in OD tubing to a 1/8 NPT female thread. Nickel-plated brass.

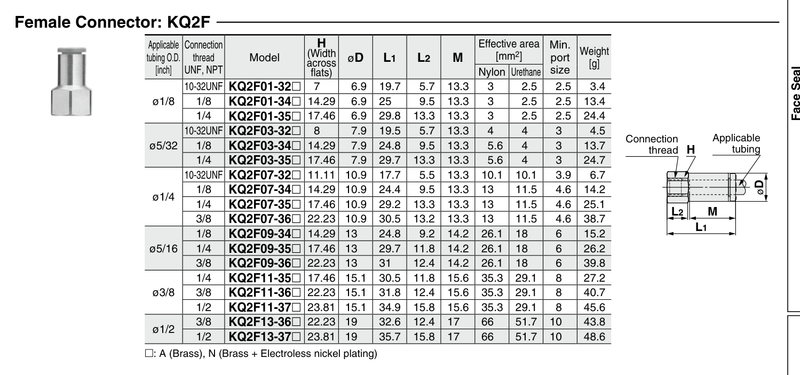

The SMC KQ2F09-34N is a KQ2 series female connector. It connects 5/16 in OD tubing to a 1/8 NPT female thread. Use to connect a tube to a male thread with a straight connection.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
