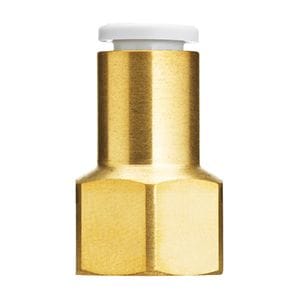

KQ2F03-32A SMC KQ2 One-Touch Fitting - Female Connector, 5/32 in OD Tube x 10-32UNF Female

Sku#: KQ2F03-32A

Contact us for availability.
SMC KQ2 female connector. Connects 5/32 in OD tubing to a 10-32UNF female thread. Brass.

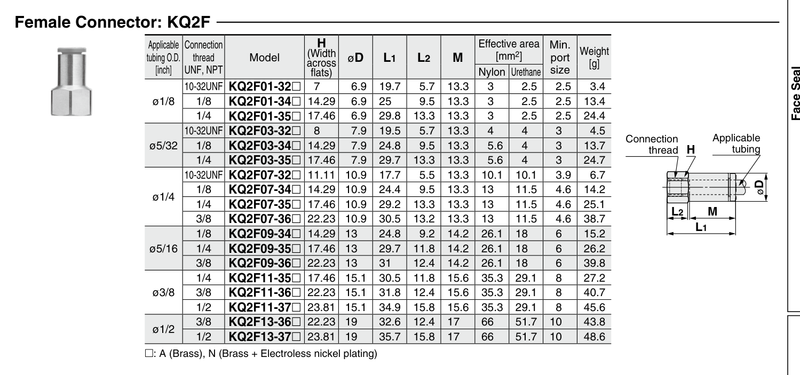

The SMC KQ2F03-32A is a KQ2 series female connector. It connects 5/32 in OD tubing to a 10-32UNF female thread. Use to connect a tube to a male thread with a straight connection.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
