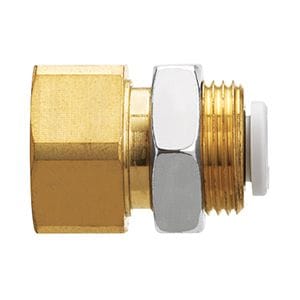

KQ2E13-03N SMC KQ2 One-Touch Fitting - Bulkhead Connector, 1/2 in OD Tube x R3/8 Male

The SMC KQ2E13-03N is a KQ2 series bulkhead connector. It connects 1/2 in OD tubing to an R3/8 male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 1-12UNF, for panel thickness up to 7 mm; requires a 26 mm mounting hole.
