KQ2E11-36A SMC KQ2 One-Touch Fitting - Bulkhead Connector, 3/8 in OD Tube x 3/8 NPT Male

Sku#: KQ2E11-36A

Contact us for availability.
SMC KQ2 bulkhead connector. Connects 3/8 in OD tubing to a 3/8 NPT male thread. Brass.

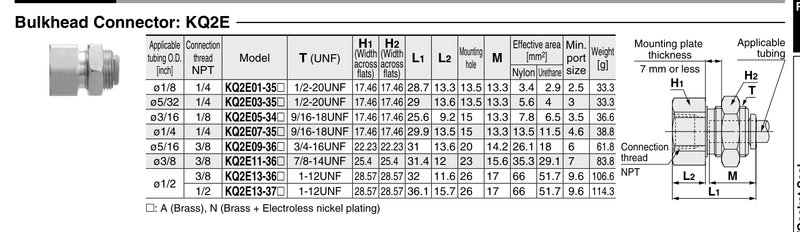

The SMC KQ2E11-36A is a KQ2 series bulkhead connector. It connects 3/8 in OD tubing to a 3/8 NPT male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 7/8-14UNF, for panel thickness up to 7 mm; requires a 23 mm mounting hole.
