KQ2E10-03A SMC KQ2 One-Touch Fitting - Bulkhead Connector, 10 mm OD Tube x R3/8 Male

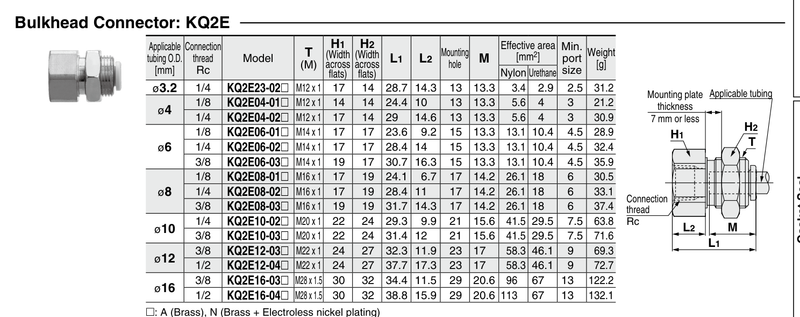

The SMC KQ2E10-03A is a KQ2 series bulkhead connector. It connects 10 mm OD tubing to an R3/8 male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M20 x 1, for panel thickness up to 7 mm; requires a 21 mm mounting hole.
