KQ2E09-03A SMC KQ2 One-Touch Fitting - Bulkhead Connector, 5/16 in OD Tube x R3/8 Male

Sku#: KQ2E09-03A

Contact us for availability.

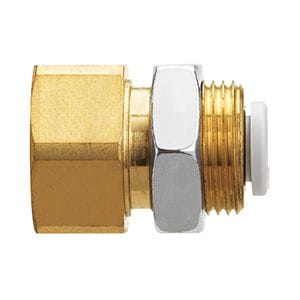

SMC KQ2 bulkhead connector. Connects 5/16 in OD tubing to an R3/8 male thread. Brass.

The SMC KQ2E09-03A is a KQ2 series bulkhead connector. It connects 5/16 in OD tubing to an R3/8 male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 3/4-16UNF, for panel thickness up to 7 mm; requires a 20 mm mounting hole.
