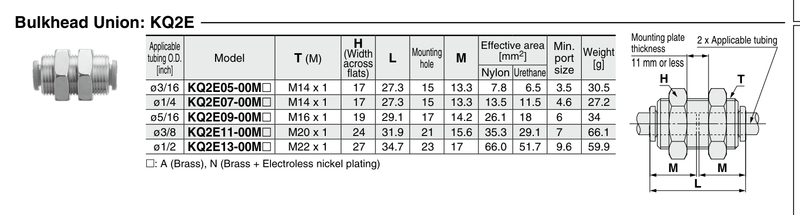

KQ2E09-00M-X12 SMC KQ2 One-Touch Fitting - Bulkhead Union, 5/16 in OD Tube

The SMC KQ2E09-00M-X12 is a KQ2 series bulkhead union. It connects 5/16 in OD tubing. Use to pass a tube through a panel, joining tubes of the same size on each side.

Round type release button. White vaseline lubricant with a white release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M16 x 1, for panel thickness up to 11 mm; requires a 17 mm mounting hole.
