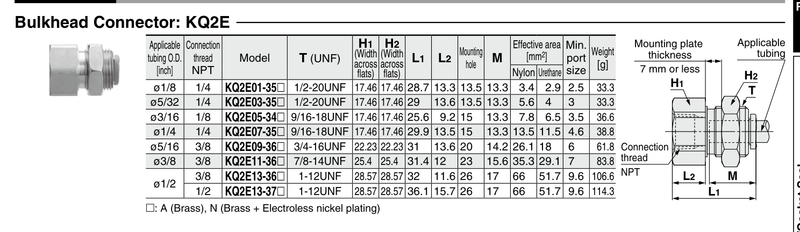

KQ2E07-35A SMC KQ2 One-Touch Fitting - Bulkhead Connector, 1/4 in OD Tube x 1/4 NPT Male

The SMC KQ2E07-35A is a KQ2 series bulkhead connector. It connects 1/4 in OD tubing to a 1/4 NPT male thread. Use to pass a connection through a panel, with a tube on one side and a male thread on the other.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 9/16-18UNF, for panel thickness up to 7 mm; requires a 15 mm mounting hole.
