KQ2E07-00N SMC KQ2 One-Touch Fitting - Bulkhead Union, 1/4 in OD Tube

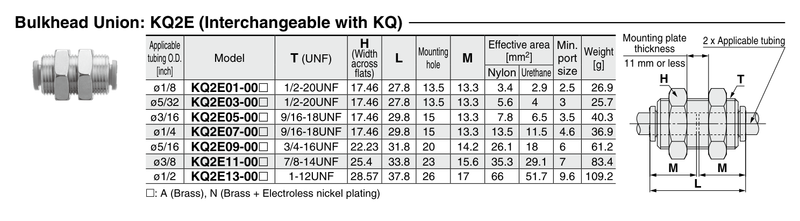

The SMC KQ2E07-00N is a KQ2 series bulkhead union. It connects 1/4 in OD tubing. Use to pass a tube through a panel, joining tubes of the same size on each side.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread 9/16-18UNF, for panel thickness up to 11 mm; requires a 15 mm mounting hole. Interchangeable with the KQ series.
