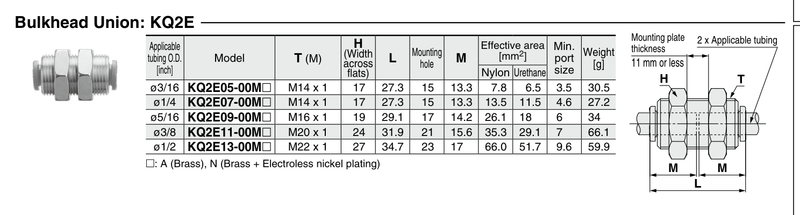

KQ2E07-00MN SMC KQ2 One-Touch Fitting - Bulkhead Union, 1/4 in OD Tube

The SMC KQ2E07-00MN is a KQ2 series bulkhead union. It connects 1/4 in OD tubing. Use to pass a tube through a panel, joining tubes of the same size on each side.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M14 x 1, for panel thickness up to 11 mm; requires a 15 mm mounting hole.
