KQ2E06-00AJ SMC KQ2 One-Touch Fitting - Bulkhead Union, 6 mm OD Tube

The SMC KQ2E06-00AJ is a KQ2 series bulkhead union. It connects 6 mm OD tubing. Use to pass a tube through a panel, joining tubes of the same size on each side.

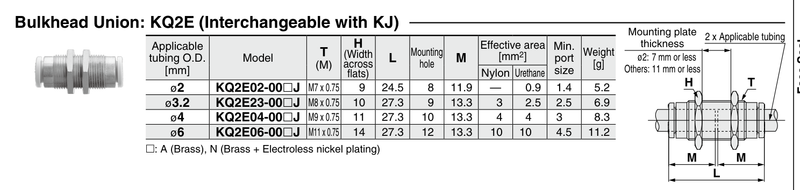

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M11 x 1, for panel thickness up to 11 mm; requires a 12 mm mounting hole. Interchangeable with the KJ series.
