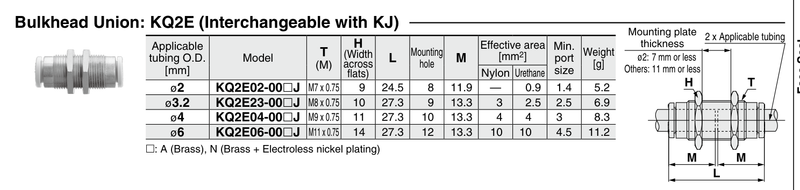

KQ2E02-00AJ SMC KQ2 One-Touch Fitting - Bulkhead Union, 2 mm OD Tube

The SMC KQ2E02-00AJ is a KQ2 series bulkhead union. It connects 2 mm OD tubing. Use to pass a tube through a panel, joining tubes of the same size on each side.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi). Mounting thread M7 x 0.75, for panel thickness up to 7 mm; requires a 8 mm mounting hole. Interchangeable with the KJ series.
