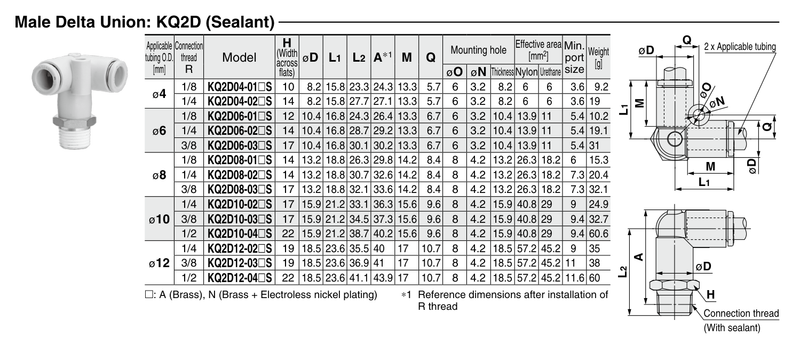

KQ2D12-04AS SMC KQ2 One-Touch Fitting - Male Delta Union, 12 mm OD Tube x R1/2 Male

The SMC KQ2D12-04AS is a KQ2 series male delta union. It connects 12 mm OD tubing to an R1/2 male thread. Use to connect two tubes to one female thread, with the tubes at right angles to each other.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
