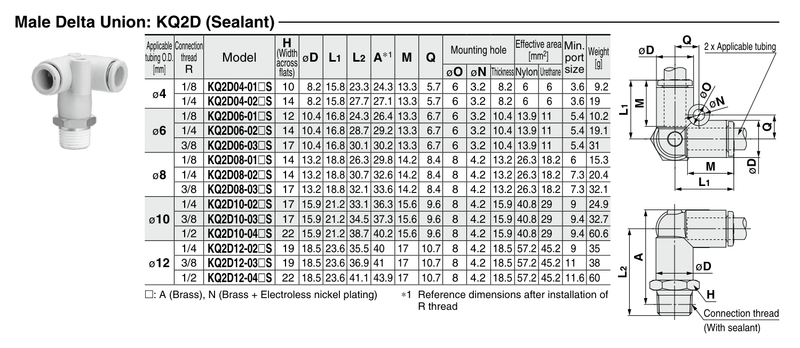

KQ2D06-03AS SMC KQ2 One-Touch Fitting - Male Delta Union, 6 mm OD Tube x R3/8 Male

The SMC KQ2D06-03AS is a KQ2 series male delta union. It connects 6 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with the tubes at right angles to each other.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
