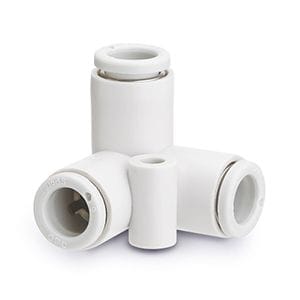

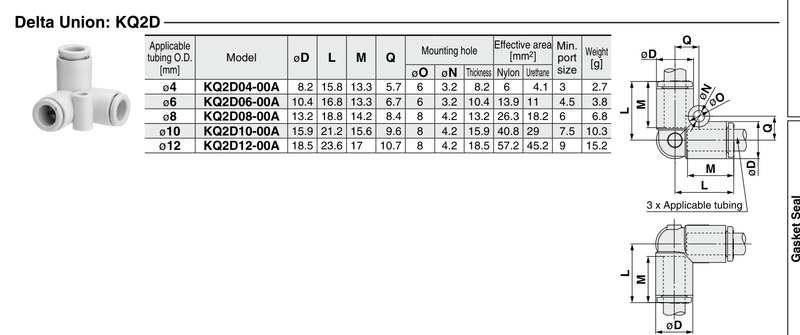

KQ2D04-00A SMC KQ2 One-Touch Fitting - Delta Union, 4 mm OD Tube

The SMC KQ2D04-00A is a KQ2 series delta union. It connects 4 mm OD tubing. Use to join three tubes of the same size at right angles to each other.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
