KEM-4V075-KE9NCB Kollmorgen Essentials 240/480 VAC 750W Servo Motor

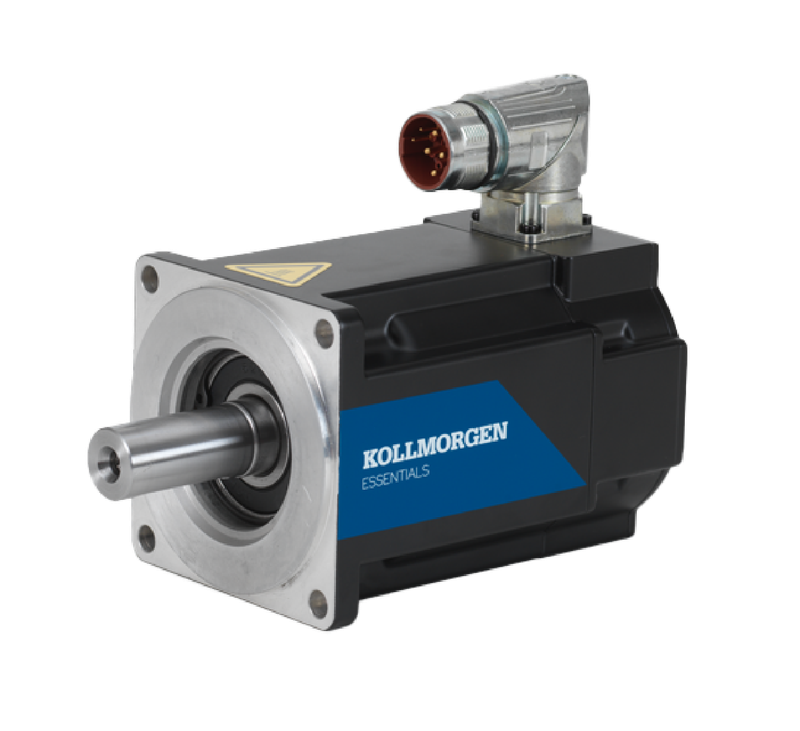

The Kollmorgen KEM-4V075-KE9NCB Servo Motor is a high-performance 750 W, 240/480 VAC servo motor in the Kollmorgen Essentials™ family—engineered for exceptional precision, torque density, and reliability. Compact yet powerful, this 84 mm IEC-frame motor is designed to deliver efficient motion control for OEMs and machine builders who need dependable performance and simplified setup.



Delivering 2.54 Nm continuous stall torque, 7.2 Nm peak torque, and speeds up to 6,000 rpm, the KEM-4V075-KE9NCB provides the perfect blend of torque and speed for mid-power motion applications. It’s equipped with Kollmorgen’s SFD-M Smart Feedback Device, a 24-bit single-turn and 16-bit battery-free multi-turn absolute encoder that ensures < ±1 arc-minute accuracy and plug-and-play configuration with Kollmorgen Essentials or AKD-series drives.



A rotatable M23 hybrid connector integrates power, feedback, and brake wiring in a single IP54-rated interface, reducing installation time and cabling complexity. The IEC-standard mounting interface and shaft key kit allow for both smooth and keyed shaft options in one model, simplifying mechanical integration and inventory management.



Built for durability, the KEM-4V075-KE9NCB features Class F insulation (155 °C), a PTC thermal sensor, and 100 °C winding rise for consistent performance under continuous duty. It is IP54-rated as standard and can be upgraded to IP65 protection with the KEM-075-100-SSK shaft-seal kit for use in harsher environments.

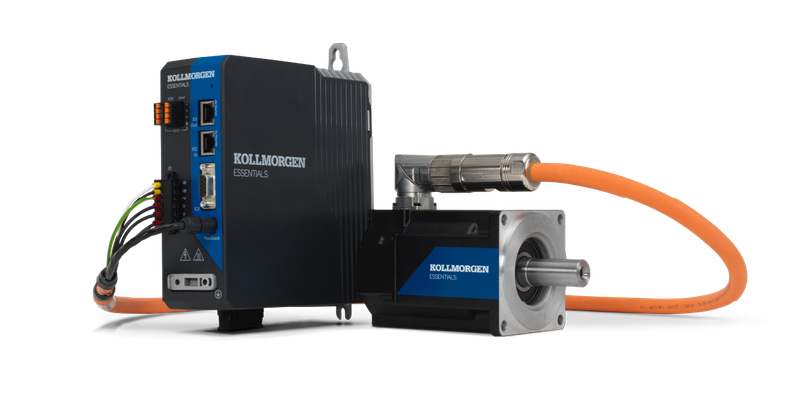

When paired with Kollmorgen Essentials drives, the KEM-4V075-KE9NCB supports EtherCAT®, PROFINET®, and EtherNet/IP™ communication, single-cable connectivity, and seamless commissioning via Kollmorgen Workbench™ software. This motor is ideal for packaging, robotics, conveyors, and general automation systems where high precision and compact form factor are key.

Key Technical Specifications
