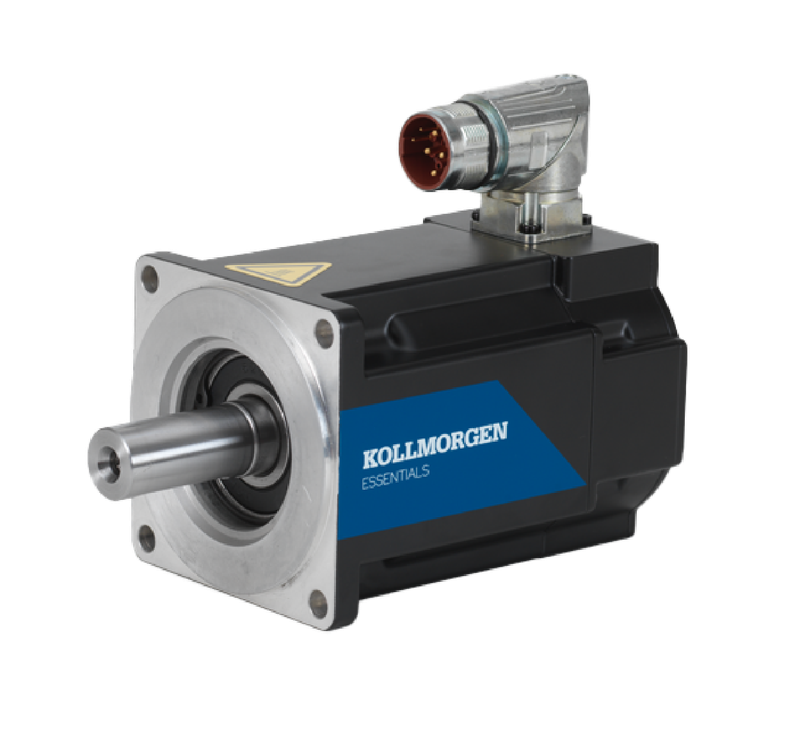

KEM-4V040-KE9NCB Kollmorgen Essentials 240/480 VAC 400W Servo Motor
Sku#: KEM-4V040-KE9NCB
The Kollmorgen KEM-4V040-KE9NCB Servo Motor delivers efficient, precise, and reliable motion performance for modern automation systems. As part of the Kollmorgen Essentials™ family, this 400 W, 240/480 VAC servo motor combines compact design, high torque density, and plug-and-play simplicity—making it ideal for OEMs and machine builders seeking dependable motion at an exceptional value.
This 84 mm IEC-frame motor provides 1.27 Nm continuous stall torque, 3.96 Nm peak torque, and speeds up to 6,000 rpm. Engineered for smooth operation and long life, it features Kollmorgen’s SFD-M Smart Feedback Device, a 24-bit single-turn and 16-bit battery-free multi-turn absolute encoder that offers < ±1 arc-minute accuracy and automatic configuration when paired with Kollmorgen Essentials or AKD-series drives.
The rotatable M23 hybrid connector integrates power, feedback, and brake wiring into a single IP54-rated connection, reducing cabling and simplifying installation. With an IEC-standard mount and interchangeable shaft key kit, the KEM-4V040-KE9NCB supports both keyed and smooth shaft coupling in a single model—helping to streamline inventory and improve system flexibility.
Designed for industrial reliability, it includes Class F insulation (155 °C), a PTC thermal sensor, and a 100 °C winding temperature rise for long-term durability. The motor’s standard IP54 protection can be upgraded to IP65 with the optional KEM-075-100-SSK shaft-seal kit.

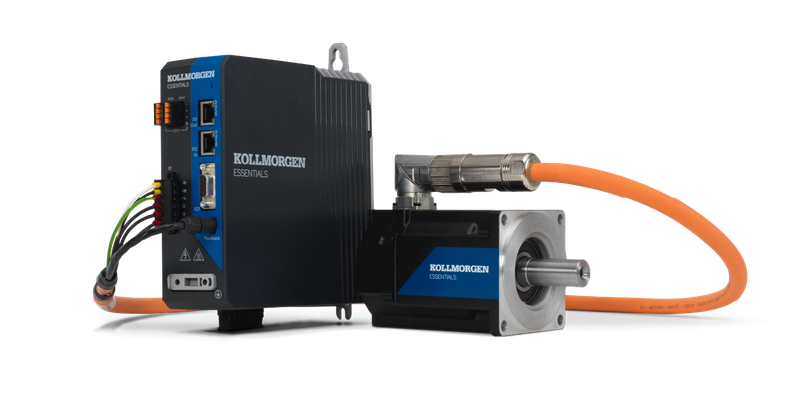

When used with Kollmorgen Essentials drives, this motor supports EtherCAT®, PROFINET®, and EtherNet/IP™ control protocols, ensuring easy integration and optimal performance in packaging, robotics, material handling, and general automation systems.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-4V040-KE9NCB |
| Power | 400 W |
| Voltage Class | 240/480 VAC (3φ) |
| Frame Size | 84 mm IEC |
| Continuous Stall Torque | 1.27 Nm (ΔT = 100 °C, no brake) |
| Peak Torque | 3.96 Nm |
| Rated Speed | 3,000 rpm (max 6,000 rpm) |
| Continuous Current | 1.23 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Connector Type | Single 90° M23 Intercontec (power + feedback + brake) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft-seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (w/o brake) | 1.48 kg (3.3 lb) |
| Thermal Time Constant | 9 minutes |
| Max Radial Load | 150 N |
| Max Axial Load | 600 N |
| Compliance | UL / CSA / CE certified |
