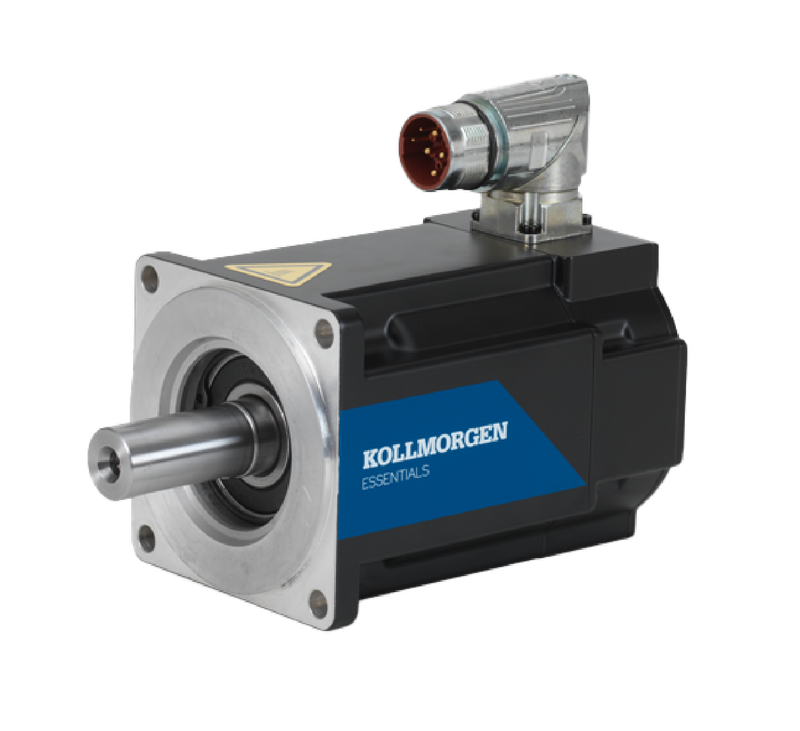

KEM-2V150-KE9NCB Kollmorgen Essentials 120/240 VAC 1500W Servo Motor
Sku#: KEM-2V150-KE9NCB
The Kollmorgen KEM-2V150-KE9NCB Servo Motor is a 1.5 kW, 108 mm IEC-frame model within the Kollmorgen Essentials™ family—offering high torque density, precision performance, and simplified installation for demanding OEM and industrial motion applications.
Operating from a 120 / 240 VAC single- or three-phase supply, this servo motor delivers 5.9 Nm continuous stall torque, 13.3 Nm peak torque, and speeds up to 5,000 rpm. Its compact size and robust design make it an ideal choice for applications requiring mid-range power and smooth, repeatable motion such as packaging, robotics, and automated handling systems.
The KEM-2V150-KE9NCB features Kollmorgen’s advanced SFD-M Smart Feedback Device, providing 24-bit single-turn and 16-bit battery-free multi-turn absolute feedback with < ±1 arc-minute accuracy. The feedback system includes onboard electronic nameplate data for plug-and-play setup with Kollmorgen Essentials or AKD-series drives—reducing commissioning time and ensuring consistent configuration.
Installation is simplified through a rotatable M23 hybrid connector that combines power, brake, and feedback in one IP54-rated interface, minimizing wiring complexity. The IEC-standard mount and shaft key kit allow both smooth and keyed configurations from a single model, streamlining system design and inventory management.
Built for industrial durability, the KEM-2V150-KE9NCB incorporates Class F insulation (155 °C), a PTC thermal sensor, and 100 °C winding rise for long life under continuous duty. The motor can be upgraded to IP65 protection with the optional KEM-150-400-SSK shaft-seal kit. When paired with Kollmorgen Essentials drives, it supports EtherCAT®, PROFINET®, and EtherNet/IP™ connectivity and single-cable operation for easy integration and high-performance motion control.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-2V150-KE9NCB |
| Power | 1.5 kW |
| Voltage Class | 120 / 240 VAC (1φ – 3φ) |
| Frame Size | 108 mm IEC |
| Continuous Stall Torque | 5.9 Nm (ΔT = 100 °C, no brake) |
| Peak Torque | 13.3 Nm |
| Rated Speed | 3,000 rpm (max 5,000 rpm) |
| Continuous Current | 8.0 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Connector Type | Single 90° M23 Intercontec (power + feedback + brake) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft-seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (w/o brake) | 4.40 kg (9.7 lb) |
| Thermal Time Constant | 14 minutes |
| Max Radial Load | 830 N |
| Max Axial Load | 1,740 N |
| Compliance | UL / CSA / CE certified |
