KEM-2V100-KE9NCB Kollmorgen Essentials 120/240 VAC 1000W Servo Motor
Sku#: KEM-2V100-KE9NCB

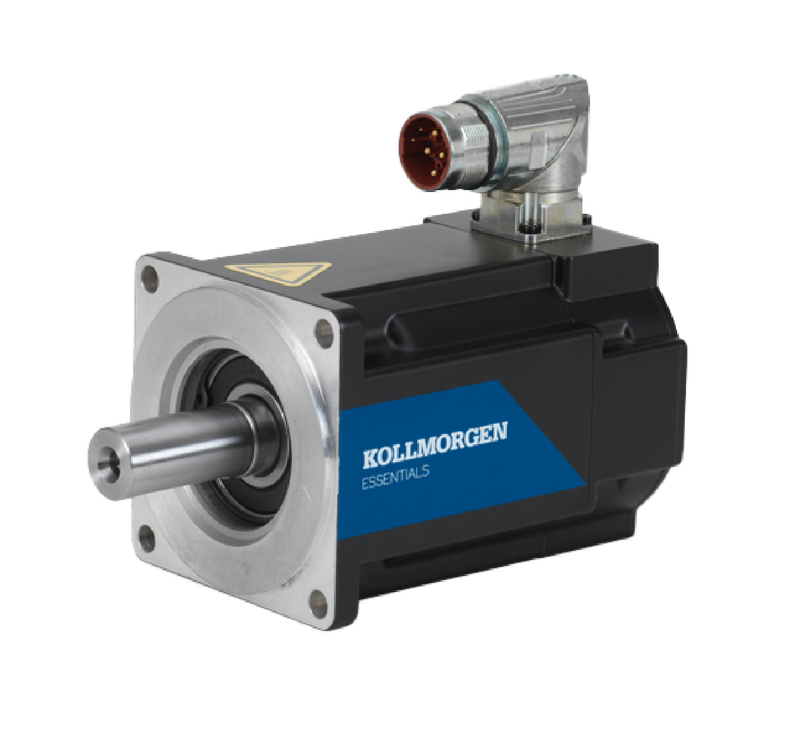

The Kollmorgen KEM-2V100-KE9NCB Servo Motor delivers dependable torque, precision, and high-speed performance in a compact 84 mm IEC-frame design. As part of the Kollmorgen Essentials™ family, it provides the ideal balance of power, simplicity, and value for OEM and industrial automation applications.
Operating from a 120 / 240 VAC single- or three-phase supply, this servo motor produces 3.63 Nm continuous stall torque, 9.7 Nm peak torque, and speeds up to 6,000 rpm, with optimized windings for smooth, efficient operation. The SFD-M Smart Feedback Device provides 24-bit single-turn and 16-bit battery-free multi-turn absolute feedback, delivering < ±1 arc-min accuracy and automatic plug-and-play setup with Kollmorgen Essentials or AKD-series servo drives.
Designed for fast integration and reliable operation, the KEM-2V100-KE9NCB features a single-cable connection through a rotatable M23 hybrid connector, combining power, brake, and feedback into one compact, IP54-rated interface. The IEC-standard mount and interchangeable shaft key kit support both smooth and keyed configurations in one SKU—reducing part count and simplifying inventory management.
Engineered for demanding automation environments, this motor includes Class F insulation (155 °C), a PTC thermal sensor, and 100 °C winding temperature rise capability, ensuring long service life and consistent thermal performance. It can be upgraded to IP65 protection using the optional KEM-075-100-SSK shaft-seal kit.
Paired with Kollmorgen Essentials drives, the KEM-2V100-KE9NCB supports EtherCAT®, PROFINET®, and EtherNet/IP™ connectivity and offers seamless integration, precise motion control, and simplified commissioning through Kollmorgen Workbench software—ideal for packaging, robotics, and general automation systems requiring compact, high-efficiency servo performance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-2V100-KE9NCB |
| Power | 1,000 W |
| Voltage Class | 120 / 240 VAC (1φ – 3φ) |
| Frame Size | 84 mm IEC |
| Continuous Stall Torque | 3.63 Nm (ΔT = 100 °C, no brake) |
| Peak Torque | 9.7 Nm |
| Rated Speed | 3,000 rpm (max 6,000 rpm) |
| Continuous Current | 4.76 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Connector Type | Single 90° M23 Intercontec (power + feedback + brake) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft-seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (w/o brake) | 3.11 kg (6.9 lb) |
| Thermal Time Constant | 15 minutes |
| Max Radial Load | 500 N |
| Max Axial Load | 1,400 N |
| Compliance | UL / CSA / CE certified |
