KEM-2V100-KE92CB Kollmorgen Essentials 120/240 VAC 1000W Servo Motor
Sku#: KEM-2V100-KE92CB

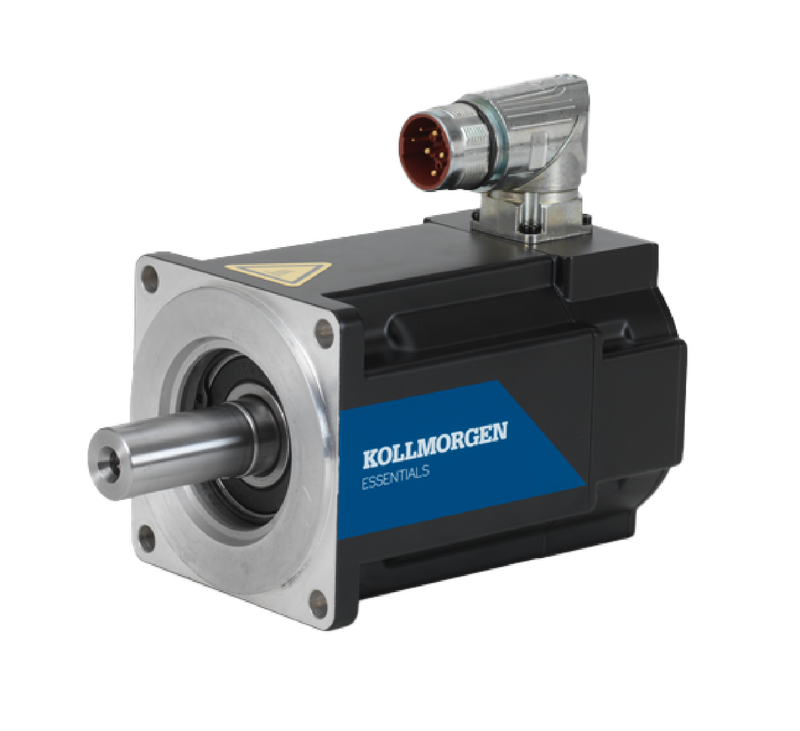

The Kollmorgen KEM-2V100-KE92CB Servo Motor is a 1.0 kW, 84 mm IEC-frame motor designed for precision, reliability, and simplified integration within the Kollmorgen Essentials™ family. It combines high torque output with compact dimensions, making it ideal for OEMs and automation system builders seeking dependable, value-engineered servo performance.
Operating from a 120 / 240 VAC single- or three-phase supply, this servo motor delivers 3.48 Nm continuous stall torque (with brake), 9.7 Nm peak torque, and speeds up to 6,000 rpm. The integrated 24 VDC failsafe holding brake provides 5.3 Nm static holding torque, ensuring secure load retention during power-off conditions—perfect for vertical-axis and precision stop applications.
Equipped with Kollmorgen’s SFD-M Smart Feedback Device, the KEM-2V100-KE92CB features 24-bit single-turn and 16-bit battery-free multi-turn absolute feedback with < ±1 arc-min accuracy. The feedback system supports plug-and-play setup and automatic motor recognition when paired with Kollmorgen Essentials or AKD-series drives, reducing commissioning time and wiring complexity.
This motor’s rotatable M23 hybrid connector combines power, brake, and feedback connections in one IP54-rated interface for streamlined installation. Built for long life and versatility, it includes Class F insulation (155 °C), a PTC thermal sensor, and windings rated for 100 °C rise at 40 °C ambient. The IEC-standard mount and shaft key kit support both smooth and keyed shaft configurations in a single model, minimizing SKU variation.

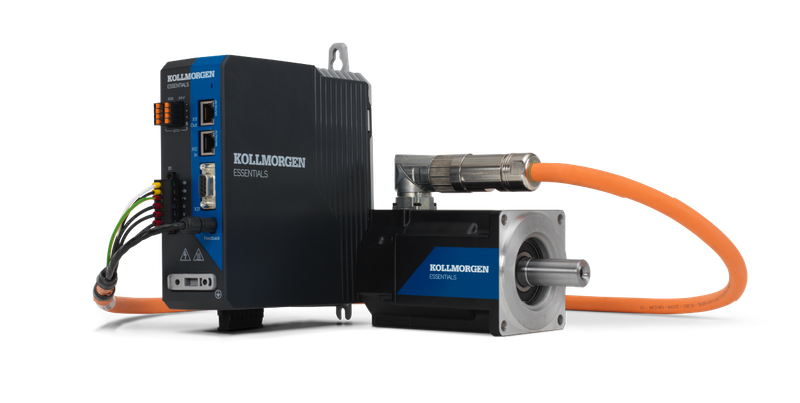

An optional IP65 shaft-seal kit (KEM-075-100-SSK) further enhances environmental protection. When paired with a Kollmorgen Essentials drive, this servo motor supports multi-Ethernet connectivity (EtherCAT®, PROFINET®, and EtherNet/IP™), single-cable operation, and seamless motion control—ideal for packaging, robotics, conveyors, and general automation systems.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-2V100-KE92CB |
| Power | 1,000 W |
| Voltage Class | 120 / 240 VAC (1φ – 3φ) |
| Frame Size | 84 mm IEC |
| Continuous Stall Torque | 3.48 Nm (with brake, ΔT = 100 °C) |
| Peak Torque | 9.7 Nm |
| Rated Speed | 3,000 rpm (max 6,000 rpm) |
| Continuous Current | 4.67 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Holding Brake | 24 V DC failsafe brake, 5.3 Nm holding torque |
| Connector Type | Single 90° M23 Intercontec (power + brake + feedback) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft-seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (with brake) | 3.5 kg (7.7 lb) |
| Thermal Time Constant | 15 minutes |
| Max Radial Load | 500 N |
| Max Axial Load | 1,400 N |
| Compliance | UL / CSA / CE certified |
