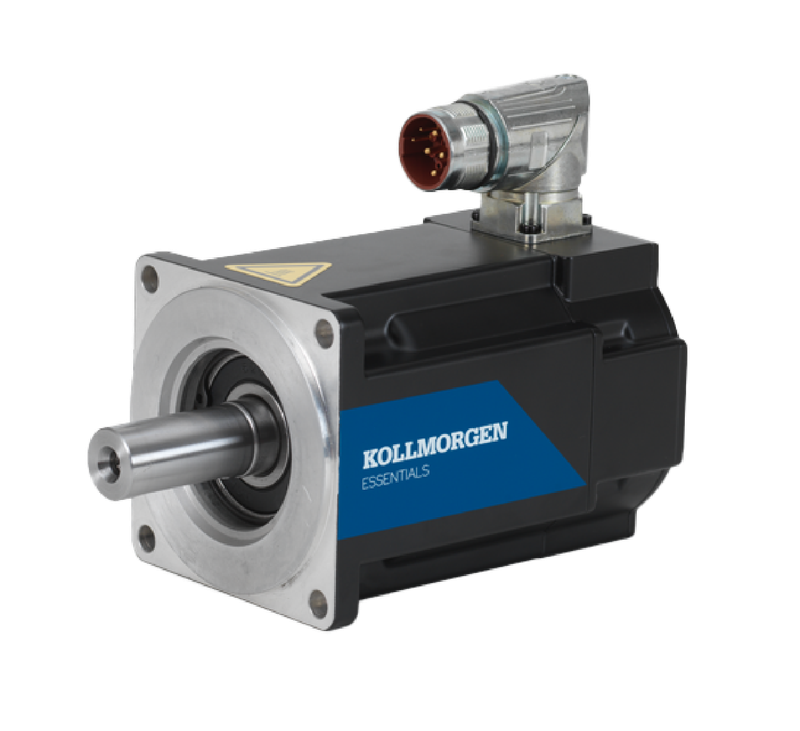

KEM-2V075-KE92CB Kollmorgen Essentials 120/240 VAC 750W Servo Motor
Sku#: KEM-2V075-KE92CB
The Kollmorgen KEM-2V075-KE92CB Servo Motor combines power, precision, and integrated safety in a compact 84 mm IEC-frame design. As part of the Kollmorgen Essentials™ product line, it’s engineered for exceptional reliability, ease of setup, and smooth performance across a broad range of OEM and industrial applications.
Operating from a 120 / 240 VAC single- or three-phase supply, this servo motor delivers 2.67 Nm continuous stall torque (with brake), 7.2 Nm peak torque, and speeds up to 6,000 rpm. It includes a 24 V DC failsafe holding brake providing 5.3 Nm static holding torque, ideal for vertical axes, safety stops, and power-loss load holding.
The SFD-M Smart Feedback Device—standard on all Kollmorgen Essentials motors—provides 24-bit single-turn and 16-bit battery-free multi-turn absolute feedback with plug-and-play setup when paired with Kollmorgen Essentials or AKD-series drives. This high-resolution encoder ensures < ±1 arc-min positional accuracy and eliminates the need for battery maintenance.
For fast, clean installation, the KEM-2V075-KE92CB integrates a rotatable M23 hybrid connector that combines power, brake, and feedback into one IP54-rated interface, reducing cabling and commissioning time. The IEC-standard mount and shaft key kit enable both smooth and keyed coupling configurations from a single model, improving flexibility and reducing part count.
Built for industrial environments, the motor features Class F insulation (155 °C), a PTC thermal sensor, and windings rated for 100 °C rise at 40 °C ambient, ensuring long-term reliability. For harsh-duty use, an optional IP65 shaft-seal kit (KEM-075-100-SSK) is available.
When paired with a Kollmorgen Essentials servo drive, this motor supports multi-Ethernet protocol integration (EtherCAT®, PROFINET®, EtherNet/IP™) and single-cable operation, making it a perfect fit for packaging machinery, robotics, material-handling, and precision automation equipment.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-2V075-KE92CB |
| Power | 750 W |
| Voltage Class | 120 / 240 VAC (1φ – 3φ) |
| Frame Size | 84 mm IEC |
| Continuous Stall Torque | 2.67 Nm (with brake, ΔT = 100 °C) |
| Peak Torque | 7.2 Nm |
| Rated Speed | 3,000 rpm (max 6,000 rpm) |
| Continuous Current | 3.76 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Holding Brake | 24 V DC failsafe brake, 5.3 Nm holding torque |
| Connector Type | Single 90° M23 Intercontec (power + brake + feedback) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft-seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (with brake) | 3.11 kg (6.9 lb) |
| Thermal Time Constant | 15 minutes |
| Max Radial Load | 500 N |
| Max Axial Load | 1,400 N |
| Compliance | UL / CSA / CE certified |
