KEM-2V020-KE92CB Kollmorgen Essentials 120/240 VAC 200W Servo Motor
Sku#: KEM-2V020-KE92CB

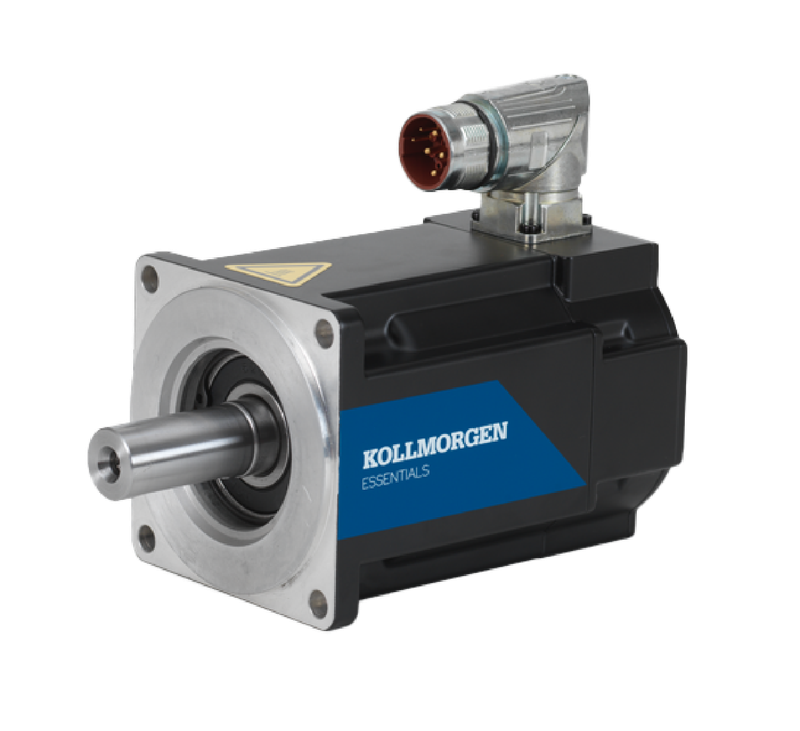

The Kollmorgen KEM-2V020-AC92CB Servo Motor is a 58 mm-frame, 200 W model from the Kollmorgen Essentials™ family — engineered for compact, efficient, and easy-to-integrate motion performance. Built for 120/240 VAC single- or three-phase operation, it provides 0.74 Nm continuous stall torque, 2.09 Nm peak torque, and rated speeds up to 3,000 rpm (maximum 6,000 rpm).
Every Essentials motor includes Kollmorgen’s SFD-M multi-turn absolute feedback system with 24-bit single-turn and 16-bit battery-free multi-turn resolution, delivering < ±1 arc-min accuracy and plug-and-play auto-recognition when paired with Kollmorgen Essentials or AKD series drives. The AC92CB configuration includes a 24 VDC holding brake (Model 2 = with brake) and an IEC-standard mount with keyed shaft, providing reliable mechanical coupling and secure load holding for vertical-axis or safety-critical applications.
A rotatable M23 hybrid connector simplifies wiring by combining power, brake, and feedback signals in one IP54-rated interface. For harsh environments, an optional IP65 shaft-seal kit (KEM-020-040-SSK) enhances ingress protection. All Essentials motors feature Class F insulation, an integrated PTC thermal sensor, and high-torque-density windings rated for 100 °C temperature rise over 40 °C ambient.

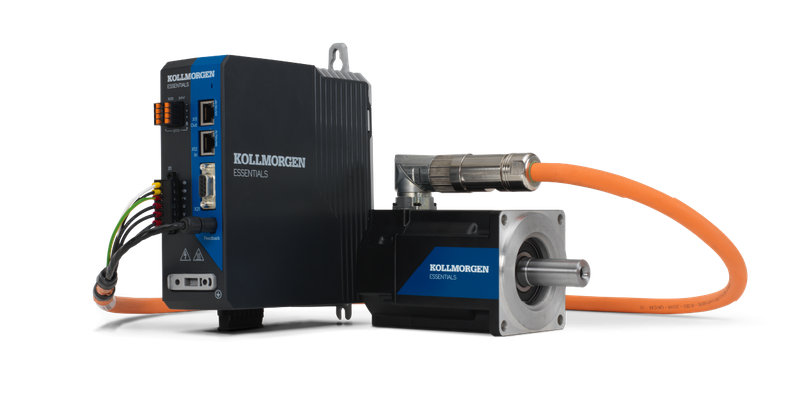

Compact and globally compatible, the KEM-2V020-AC92CB integrates seamlessly with Kollmorgen Essentials drives via a single-cable connection and supports multi-Ethernet control protocols through the drive platform — ideal for packaging, light automation, material handling, and general OEM machinery.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KEM-2V020-AC92CB |
| Power | 200 W |
| Voltage Class | 120 / 240 VAC (1φ – 3φ) |
| Frame Size | 58 mm IEC |
| Continuous Stall Torque | 0.73 Nm (with brake) |
| Peak Torque | 2.09 Nm |
| Rated Speed | 3,000 rpm (6,000 rpm max) |
| Continuous Current | 1.54 Arms |
| Feedback Device | SFD-M (24-bit ST + 16-bit MT, battery-free) |
| Holding Brake | 24 V DC, 1.42 Nm holding torque |
| Connector Type | Single 90° M23 Intercontec (power + brake + feedback) |
| Mounting | IEC standard mount / keyed shaft |
| Protection | IP54 standard / IP65 with optional shaft seal kit |
| Insulation Class | Class F (155 °C) |
| Weight (with brake) | ≈ 1.35 kg |
| Thermal Time Constant | 7 min |
| Radial / Axial Load Rating | 150 N / 600 N |
| Compliance | UL / CSA / CE |
