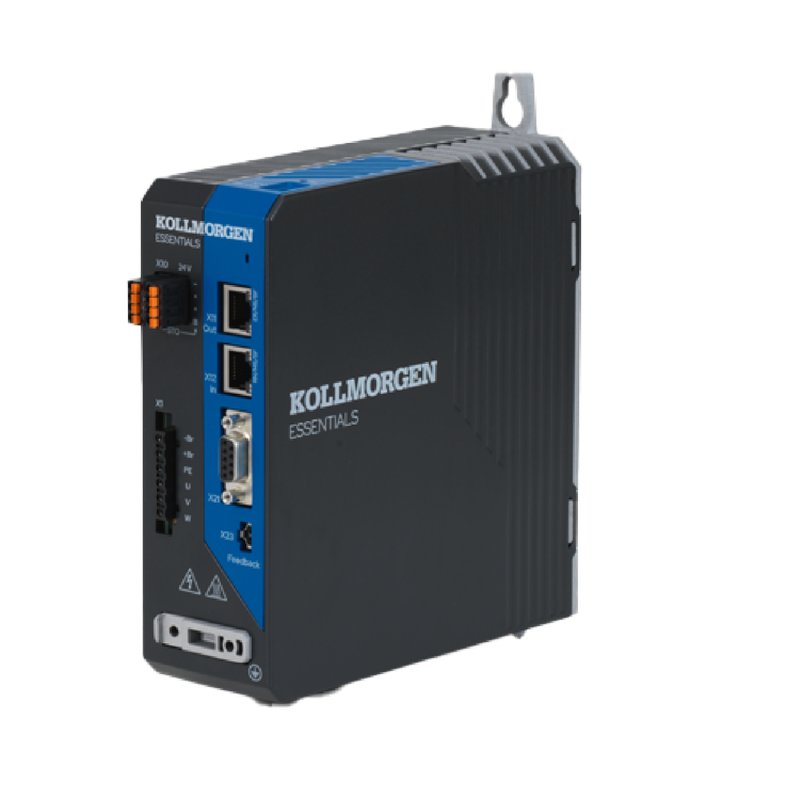

KED-SPM-7V12S-A100-0000-A Kollmorgen Essentials 240/480 VAC Motor Drive

The Kollmorgen KED-SPM-7V12S-A100-0000-A is a high-capacity 240/480 VAC, 3-phase servo drive designed for medium-to-high-power axes in advanced industrial automation. Part of the Kollmorgen Essentials™ product family, it provides exceptional performance, universal network support, and fast commissioning—all in a compact, cabinet-friendly housing.

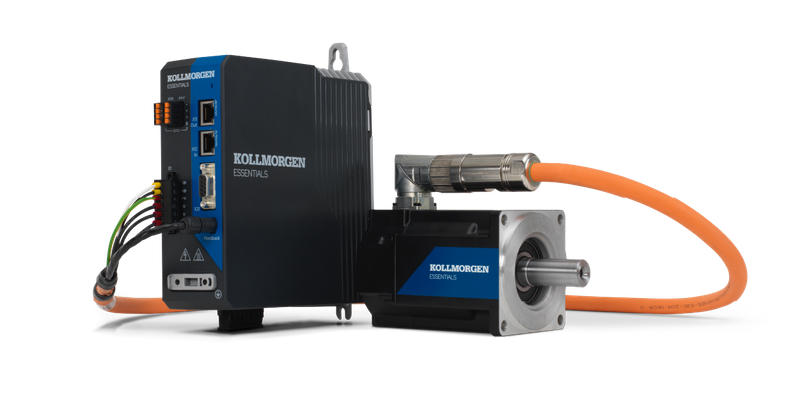

With 12 Arms continuous and 36 Arms peak output current, this drive is ideal for powering 4.0 kW servo systems, including robotics, packaging machines, large conveyors, gantries, and general-purpose industrial equipment. Its slim enclosure—325 mm height, 70 mm width, and 202 mm depth—delivers high power density for multi-axis systems.



Every Essentials 7V drive supports universal multi-protocol Industrial Ethernet, including EtherCAT®, PROFINET® IRT, and EtherNet/IP™ CIP Sync—no firmware swaps, no extra models required.



Commissioning is fast and simplified with Kollmorgen WorkBench, featuring Express Setup, a multi-channel digital oscilloscope, automated tuning tools, and integrated motor electronic-nameplate support via SFD-M or SFD3 feedback.



Built-in dual-channel STO up to SIL2 / PL d provides functional safety without external relays or modules. Additional industrial features include high-speed digital I/O (<1 μs), external braking resistor terminals, DC bus sharing capability, and shield-friendly grounding for EMC-optimized installation.



Designed for OEMs who need high-power performance without added complexity, the KED-SPM-7V12S-A100-0000-A offers a rugged, efficient, and globally certified motion platform.
