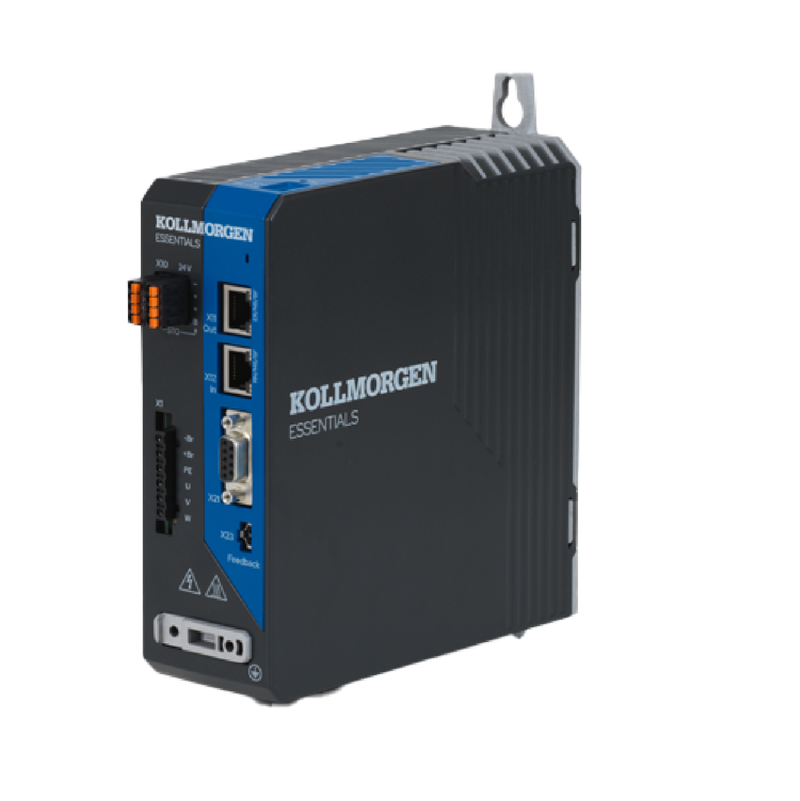

KED-SPM-6V12S-A100-0000-A Kollmorgen Essentials Servo Motor Drive

The Kollmorgen KED-SPM-6V12S-A100-0000-A Servo Drive is a high-performance, compact motion controller in the Kollmorgen Essentials™ family—designed to deliver precise, efficient control for Kollmorgen KEM-series servo motors in demanding industrial automation applications. Combining ease of use with advanced motion capability, this drive provides the perfect balance of power, safety, and flexibility for OEMs and system builders.



Operating from a single-phase 120/240 VAC supply, the KED-SPM-6V12S-A100-0000-A provides 12 A continuous and 36 A peak output current, making it ideal for Kollmorgen KEM-2V150 and KEM-2V250 servo motors (1.5 kW–2.5 kW range). It incorporates Kollmorgen’s advanced current loop and motion algorithms for ultra-smooth torque, velocity, and position control, supporting rapid dynamic response and high accuracy under varying loads.



This drive supports multi-Ethernet communication protocols, including EtherCAT®, PROFINET®, and EtherNet/IP™, ensuring seamless integration into modern automation networks. Setup is fast and intuitive using Kollmorgen Workbench™, which automatically recognizes motor and feedback data through the SFD-M Smart Feedback Device, drastically reducing commissioning time.



The KED-SPM-6V12S-A100-0000-A includes dual-channel Safe Torque Off (STO) safety rated to SIL2 / Cat 3 PL d, a USB-C service port, and DIN-rail mounting for flexible and space-saving installation. It also features integrated EMI filtering, a natural convection cooling system, and wide environmental tolerance for reliable operation in industrial environments.



Compact, efficient, and globally certified, this servo drive is the ideal solution for packaging, material handling, robotics, and machine automation systems that demand high power, smooth motion, and exceptional reliability.

Key Technical Specifications
