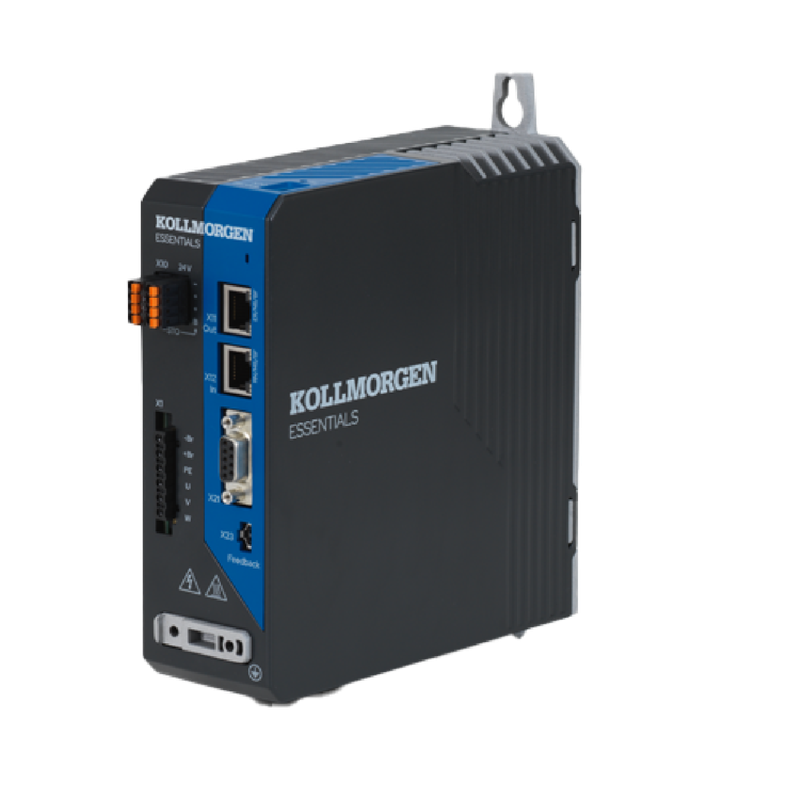

KED-SPM-6V03S-A100-0000-A Kollmorgen Essentials Motor Drive

The Kollmorgen KED-SPM-6V03S-A100-0000-A Servo Drive is part of the Kollmorgen Essentials™ family—a next-generation servo drive platform that combines powerful motion performance, multi-protocol connectivity, and simplified setup for OEMs and machine builders. Designed for seamless integration with Kollmorgen Essentials servo motors (KEM series), this compact, high-efficiency drive delivers smooth, precise motion control in a plug-and-play format.



The KED-SPM-6V03S-A100-0000-A operates from a single-phase 120/240 VAC supply and delivers up to 3 A continuous / 9 A peak current, ideal for driving Kollmorgen KEM-2V020 and KEM-2V040 series servo motors (200–400 W). Built around Kollmorgen’s proven motion technology, it supports advanced control algorithms for precise torque, velocity, and position regulation while maintaining high efficiency and low heat generation.

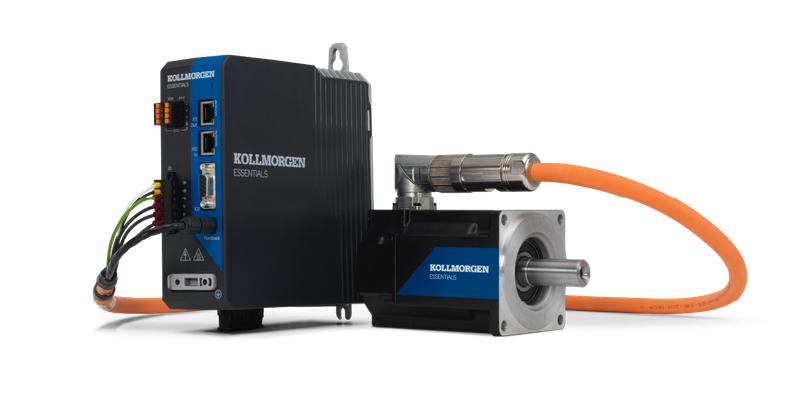

With multi-Ethernet communication support—including EtherCAT®, PROFINET®, and EtherNet/IP™—the KED Essentials drive integrates effortlessly into diverse automation architectures. Setup and configuration are fast and intuitive using Kollmorgen Workbench™ software, which automatically detects connected motors through the electronic nameplate stored in the SFD-M feedback device.



The drive includes dual-channel Safe Torque Off (STO) functionality (SIL2 / Cat 3 PL d), USB-C service port, and DIN-rail mounting for flexible, space-saving installation. Designed for reliability and global compliance, it features integrated EMI filtering, a wide ambient operating range, and easy-access terminals for power, I/O, and control wiring.



The KED-SPM-6V03S-A100-0000-A offers the perfect balance of performance, scalability, and simplicity—making it ideal for packaging machines, conveyors, robotics, and general automation equipment that require dependable, value-engineered motion control.



Key Technical Specifications
