Details

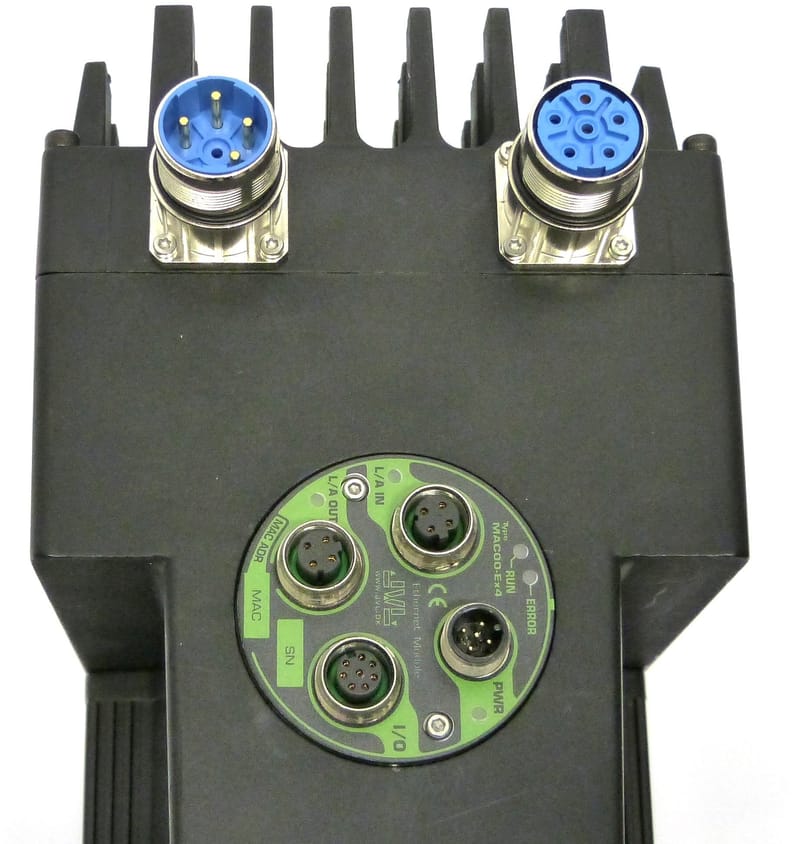

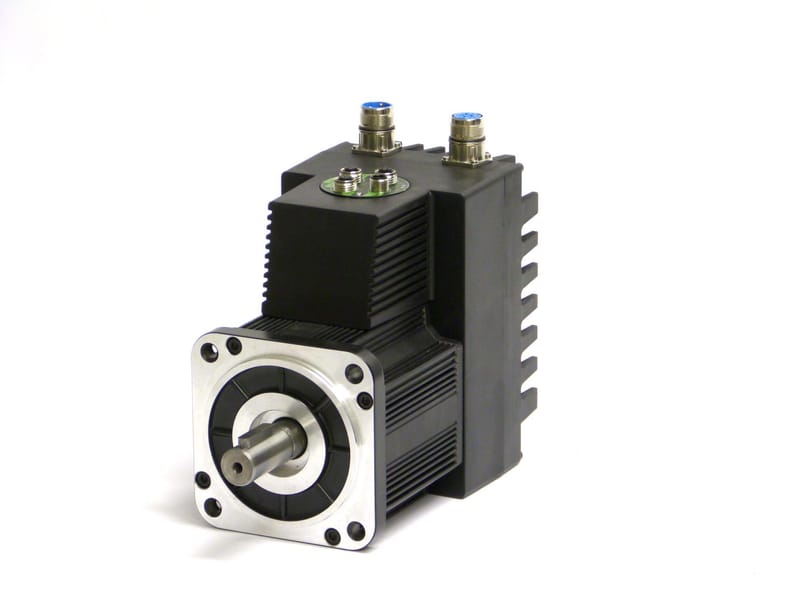

JVL Motors MAC3000-D2-FAAL Technical Specifications:3000 Watts3600 Max RPMIP55ABS ENCODER 8192 CPR.JVL Motors provide a complete solution for larger power ratings.
- All JVL Motors come with built-in main power supplies.
- Choose between model with or without brake.
- Choose Expansion module from the extensive selection for any application.
Additional Motor Sizes:- MAC1500-D2 - 1.5kW
- MAC1500-D5 (w. brake) - 1.5kW
- MAC3000-D2 - 3.0kW
- MAC3000-D5 (w. brake) - 3.0kW
- MAC4500-D2 - 4.5kW
- MAC4500-D5 (w. brake) - 4.5kW

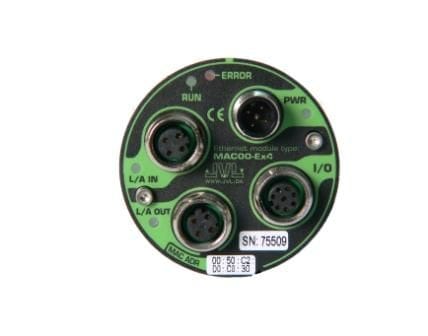

Expansion module you can choose between:- Basic Modules
- Programmable Modules
- Field Bus Modules
- High Speed Multi-Axis Modules
- Wireless Modules
Most of them available with either cable glands, DSUB connectors and M12 connectors. See EXPANSION MODULES SELECTION CHART.See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.Read more about MAC1500-4500. (Click here)New features:- Absolute multiturn encoder without battery
- Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
- 2 RS422 channels for encoder in/output and SSI encoder etc.
- 6IO for capture of position, interrupt, counters, enable, timer and PLC functions
*Available with either 2048 PPR encoder (C) or Absolute multiturn encoder (F). -
Additional Information
Part Number MAC3000-D2-FAAL Brand JVL Industri Elektonik A/S Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 35.000000000 Lead Days -
