H2-52-025-A5-00-020000 Kollmorgen Essentials Motor & Drives Cable - 20 Meter
Sku#: H2-52-025-A5-00-020000
The Kollmorgen Essentials H2-52-025-A5-00-020000 is a 20-meter hybrid servo cable engineered for long-distance, higher-power servo applications within the Kollmorgen Essentials platform. Designed as part of the H2 Mid-flex PUR cable family, it combines motor power, brake wiring, and absolute feedback (SFD-M/SFD3) inside a single, fully shielded cable—reducing cable bulk, improving EMC performance, and providing highly reliable servo connectivity.
This “025” variant uses 2.5 mm² motor power conductors, making it suitable for motors powered by the KED-SPM-6V10S, KED-SPM-6V12S, and KED-SPM-6V20S higher-power servo drives. Built for demanding industrial environments, the cable features a rugged PUR jacket rated for 1000 V, exceptional oil and chemical resistance, and a 12-million-cycle flex life, ensuring long-term durability even in continuous-motion or cable-track applications.

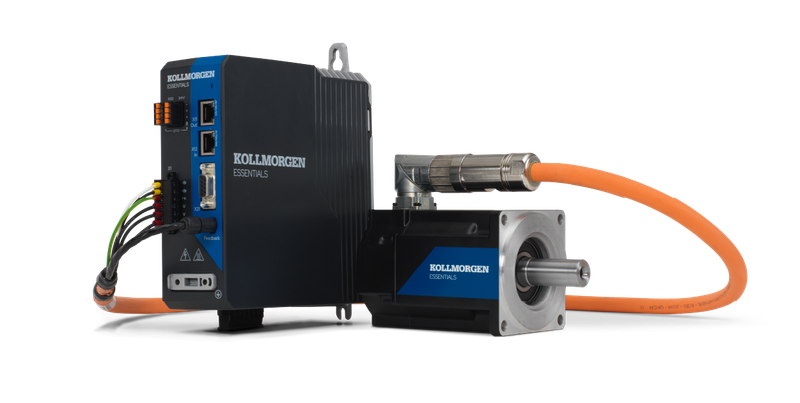

The motor-end connector uses the A5 M23 SpeedTec interface, providing fast, secure mating with Kollmorgen KEM, AKM, and AKM2G motors that use SFD-M or SFD3 feedback. Connector type 52 ensures correct drive-end compatibility with higher-power Essentials drives.
The hybrid cable contains motor phases (U/V/W), brake leads, protective earth, and shielded SFD feedback pairs arranged in an EMC-optimized structure—ensuring stable, noise-free encoder signaling across extended distances.
The 020000 length identifier confirms this as a 20-meter cable (20,000 mm). It meets global industrial compliance requirements including UL/ULC, CE, NFPA 79, and CEI 20-35 flame resistance, and is lead-free, silicone-free, oil-resistant, and clean-room compatible.
This long-range hybrid cable is ideal for gantry systems, large machines, extended axes, and installations requiring reliable high-performance servo connectivity over substantial distances.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | H2-52-025-A5-00-020000 |
| Cable Family | H2 Mid-flex Hybrid PUR (motor + brake + feedback) |
| Drive Compatibility | KED-SPM-6V10S, KED-SPM-6V12S, KED-SPM-6V20S |
| Motor Connector Type | A5 — M23 SpeedTec |
| Power Conductor Size | 2.5 mm² |
| Cable Outer Diameter | approx. 14–15 mm |
| Minimum Bend Radius (Static) | approx. 70–75 mm |
| Minimum Bend Radius (Dynamic) | approx. 100–110 mm |
| Length | 20 meters |
| Weight | approx. 10.00 kg (22.05 lb) (0.50 kg per meter × 20) |
| Voltage Rating | 1000 V |
| Temperature Rating | −40°C to +90°C (flexing) |
| Flex Life | 12,000,000 cycles |
| Certifications | CE, UL/ULC, NFPA 79, CEI 20-35 flame resistant, oil-resistant, silicone-free, clean-room approved |
