H2-52-025-A5-00-012000 Kollmorgen Essentials Motor & Drive Cable - 12 Meter
Sku#: H2-52-025-A5-00-012000

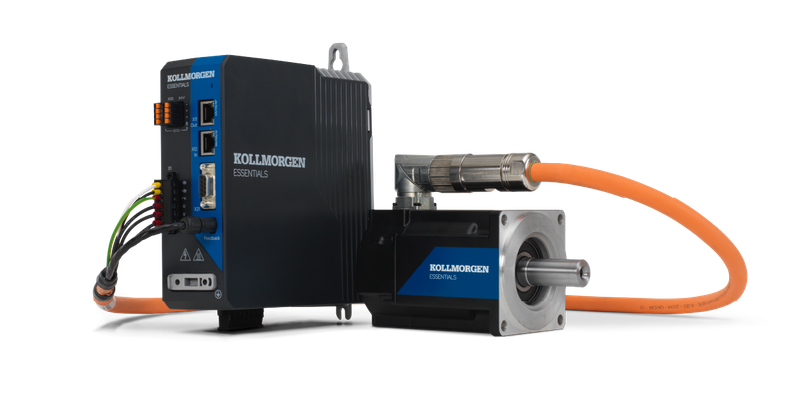

The Kollmorgen Essentials H2-52-025-A5-00-012000 is a 12-meter hybrid servo cable designed for higher-power Kollmorgen Essentials drives and motors. As part of the H2 Mid-flex PUR cable family, it integrates motor power, brake conductors, and absolute encoder feedback (SFD-M/SFD3) in a single, shielded, long-life cable—perfect for mid-range and extended servo motion applications.
This “025” cable variant uses 2.5 mm² power conductors, providing increased current-carrying capability for larger motors driven by KED-SPM-6V10S, KED-SPM-6V12S, and KED-SPM-6V20S servo drives. Its durable PUR jacket delivers 1000 V insulation, excellent chemical and oil resistance, and a proven 12 million cycle flex life, making it suitable for cable carriers and high-duty motion systems.
The motor-end connector uses the A5 M23 SpeedTec interface, ensuring plug-and-play compatibility with Kollmorgen KEM, AKM, and AKM2G motors equipped with SFD-M or SFD3 feedback. The drive-side 52 connector code guarantees correct pinout for higher-power Essentials drives.
Inside the hybrid cable, motor phases (U/V/W), brake leads, protective earth, and shielded differential feedback pairs are arranged in an EMC-optimized layout—ensuring clean, reliable signal integrity even across long distances.
The 012000 length code designates a 12-meter cable (12,000 mm). The cable meets globally recognized industrial standards including UL/ULC, CE, NFPA 79, and CEI 20-35 flame resistance, and is lead-free, silicone-free, oil-resistant, and clean-room compatible.
Designed for extended-travel servo axes and medium-length cable runs, this hybrid cable delivers excellent durability, plug-and-play compatibility, and long-term reliability.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | H2-52-025-A5-00-012000 |
| Cable Family | H2 Mid-flex Hybrid PUR (motor + brake + feedback) |
| Drive Compatibility | KED-SPM-6V10S, KED-SPM-6V12S, KED-SPM-6V20S |
| Motor Connector Type | A5 — M23 SpeedTec |
| Power Conductor Size | 2.5 mm² |
| Cable Outer Diameter | approx. 14–15 mm |
| Minimum Bend Radius (Static) | approx. 70–75 mm |
| Minimum Bend Radius (Dynamic) | approx. 100–110 mm |
| Length | 12 meters |
| Weight | approx. 6.00 kg (13.23 lb) (0.50 kg per meter × 12) |
| Voltage Rating | 1000 V |
| Temperature Rating | −40°C to +90°C (flexing) |
| Flex Life | 12,000,000 cycles |
| Certifications | CE, UL/ULC, NFPA 79, CEI 20-35 flame resistant, oil-resistant, silicone-free, clean-room approved |
