H2-52-025-A5-00-009000 Kollmorgen Essentials Motors & Drive Cable - 9 Meter
Sku#: H2-52-025-A5-00-009000

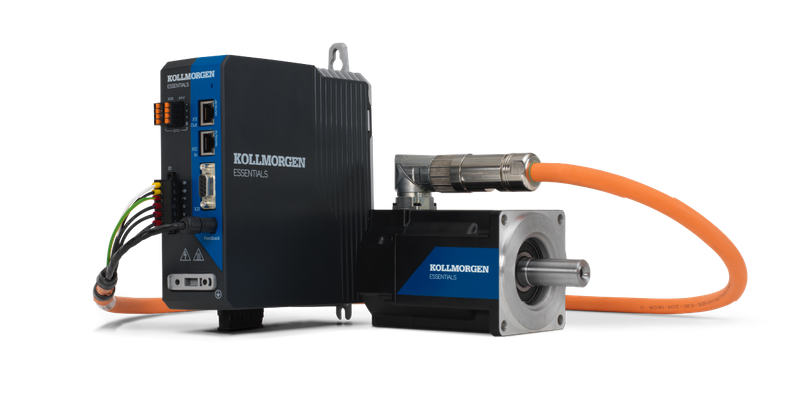

The Kollmorgen Essentials H2-52-025-A5-00-009000 is a 9-meter hybrid servo cable engineered specifically for higher-power Kollmorgen Essentials motion systems. As part of the H2 Mid-flex PUR cable family, this cable integrates motor power, brake wiring, and SFD-M/SFD3 absolute encoder feedback into one fully shielded, industrial-grade assembly—optimizing reliability, reducing cabling complexity, and supporting long-distance servo motor installations.
Featuring 2.5 mm² motor power conductors, this “025” cable version is designed for higher continuous current demands associated with larger servo motors driven by KED-SPM-6V10S, KED-SPM-6V12S, and KED-SPM-6V20S drives. Its rugged PUR jacket offers 1000 V insulation, exceptional oil and chemical resistance, and an outstanding 12 million cycle flex life, making it ideal for dynamic, cable-track, or extended-travel applications.
The motor-side connector uses the A5 M23 SpeedTec interface, ensuring plug-and-play compatibility with Kollmorgen KEM, AKM, and AKM2G motors equipped with SFD-M or SFD3 feedback. Connector code 52 ensures proper drive-side connectivity to the higher-power Essentials drives.
The hybrid cable design bundles motor phases (U/V/W), brake wires, protective earth, and shielded differential encoder communication pairs in a noise-optimized layout—ensuring excellent EMC performance and reliable absolute-position feedback over long distances.
The 009000 length code designates this as a 9-meter (9,000 mm) cable. It meets stringent industrial standards including UL/ULC, CE, NFPA 79, and CEI 20-35 flame resistance, and is lead-free, silicone-free, oil-resistant, and clean-room approved.
Durable, flexible, and engineered for high-performance servo systems, the H2-52-025-A5-00-009000 is the ideal hybrid cable for mid-to-long-distance Kollmorgen Essentials installations.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | H2-52-025-A5-00-009000 |
| Cable Family | H2 Mid-flex Hybrid PUR (motor + brake + feedback) |
| Drive Compatibility | KED-SPM-6V10S, KED-SPM-6V12S, KED-SPM-6V20S |
| Motor Connector Type | A5 — M23 SpeedTec |
| Power Conductor Size | 2.5 mm² |
| Cable Outer Diameter | approx. 14–15 mm |
| Minimum Bend Radius (Static) | approx. 70–75 mm |
| Minimum Bend Radius (Dynamic) | approx. 100–110 mm |
| Length | 9 meters |
| Weight | approx. 4.50 kg (9.92 lb) (0.50 kg per meter × 9) |
| Voltage Rating | 1000 V |
| Temperature Rating | −40°C to +90°C (flexing) |
| Flex Life | 12,000,000 cycles |
| Certifications | CE, UL/ULC, NFPA 79, CEI 20-35 flame resistant, oil-resistant, silicone-free, clean-room approved |
