H2-52-025-A5-00-001000 Kollmorgen Essentials Motor & Drive Cable - 1 Meter
Sku#: H2-52-025-A5-00-001000

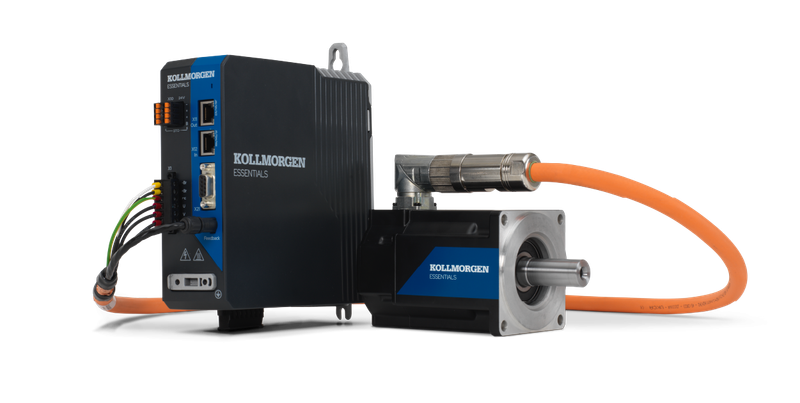

The Kollmorgen Essentials H2-52-025-A5-00-001000 is a 1-meter hybrid servo cable engineered for higher-power Kollmorgen Essentials motion systems. As part of the H2 Mid-flex PUR hybrid cable series, it combines motor power, brake wiring, and SFD-M/SFD3 absolute encoder feedback into a single, shielded, high-performance cable optimized for reliability, durability, and simplified installation.
This cable features 2.5 mm² motor power conductors (designated by “025”), supporting larger servo motors and higher continuous current requirements. Its rugged PUR jacket is rated for 1000 V, offers excellent oil and chemical resistance, and is designed for dynamic motion with a flex life exceeding 12 million cycles—making it ideal for moving-axis applications.
The motor-end connector uses the A5 M23 SpeedTec interface, ensuring full compatibility with Kollmorgen KEM, AKM, and AKM2G motors equipped with SFD-M or SFD3 feedback. Connector code 52 ensures a correct drive-side interface for KED-SPM-6V10S, KED-SPM-6V12S, and KED-SPM-6V20S servo drives.
The hybrid construction carries motor phases (U/V/W), brake leads, protective earth, and shielded absolute encoder feedback pairs in an EMC-optimized layout—ensuring stable communication and noise immunity even in electrically demanding environments.
The 001000 length code identifies this as a 1-meter (1,000 mm) cable. It meets global industrial compliance standards including UL/ULC, NFPA 79, CE, and CEI 20-35 flame resistance, and is silicone-free, lead-free, oil-resistant, and clean-room compliant.
Engineered for reliability and ready for plug-and-play installation, this cable is the ideal short-run hybrid cable for higher-power Kollmorgen Essentials servo axes.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | H2-52-025-A5-00-001000 |
| Cable Family | H2 Mid-flex Hybrid PUR (motor + brake + feedback) |
| Drive Compatibility | KED-SPM-6V10S, KED-SPM-6V12S, KED-SPM-6V20S |
| Motor Connector Type | A5 — M23 SpeedTec |
| Power Conductor Size | 2.5 mm² |
| Cable Outer Diameter | approx. 14–15 mm (H2-025 series) |
| Minimum Bend Radius (Static) | approx. 70–75 mm |
| Minimum Bend Radius (Dynamic) | approx. 100–110 mm |
| Length | 1 meter |
| Weight | approx. 0.50 kg (1.10 lb) (H2-025 cables ≈ 0.50 kg/m) |
| Voltage Rating | 1000 V |
| Temperature Rating | −40°C to +90°C (flexing) |
| Flex Life | 12,000,000 cycles |
| Certifications | CE, UL/ULC, NFPA 79, CEI 20-35 flame resistant, oil-resistant, silicone-free, clean-room approved |
