H2-51-015-A5-00-020000 Kollmorgen Essentials Motor & Drive Cable - 20 Meter

The Kollmorgen Essentials H2-51-015-A5-00-020000 is a 20-meter hybrid servo cable designed for extended-distance servo motor installations within the Kollmorgen Essentials motion platform. As part of the H2 Mid-flex PUR hybrid cable family, it integrates motor power, brake wiring, and SFD-M/SFD3 absolute encoder feedback in a single, fully shielded, industrial-grade cable—reducing machine wiring complexity while improving reliability and noise immunity.



Built around 1.5 mm² power conductors, the cable features a rugged PUR outer jacket engineered for dynamic applications requiring long travel, repeated flexing, and exposure to oils or industrial contaminants. It is rated for 1000 V, supports more than 12 million flex cycles, and maintains excellent EMC performance through its multi-layer shielding design.

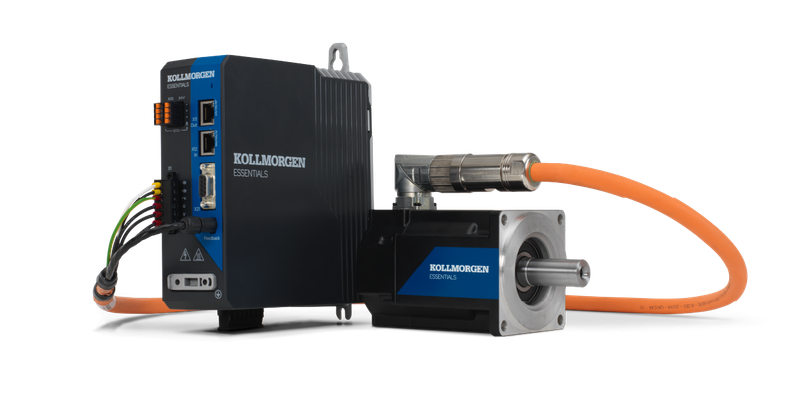

The motor-side connector uses the A5 M23 SpeedTec interface, ensuring direct compatibility with Kollmorgen KEM, AKM, and AKM2G servo motors that utilize SFD-M or SFD3 feedback technology. The drive-side 51 connector coding ensures a plug-and-play connection with KED-SPM-6V03S and KED-SPM-6V06S servo drives.



Inside the hybrid structure, the cable carries three phase power leads (U/V/W), brake conductors, protective earth, and differential encoder feedback pairs in a noise-optimized layout, ensuring high-speed, interference-free communication across long distances.



The 020000 length designation identifies this assembly as a 20-meter cable consistent with Kollmorgen’s mm-based length coding system. The cable meets global industrial standards including UL/ULC, CE, NFPA 79, and CEI 20-35 flame resistance, and is lead-free, silicone-free, oil-resistant, and clean-room compatible.



This cable is ideal for gantries, robotics, long-axis systems, and any servo installation requiring reliable long-distance connectivity.

Key Technical Specifications
