H2-51-015-A5-00-012000 Kollmorgen Essentials Motor & Drive Cable - 12 Meter
Sku#: H2-51-015-A5-00-012000

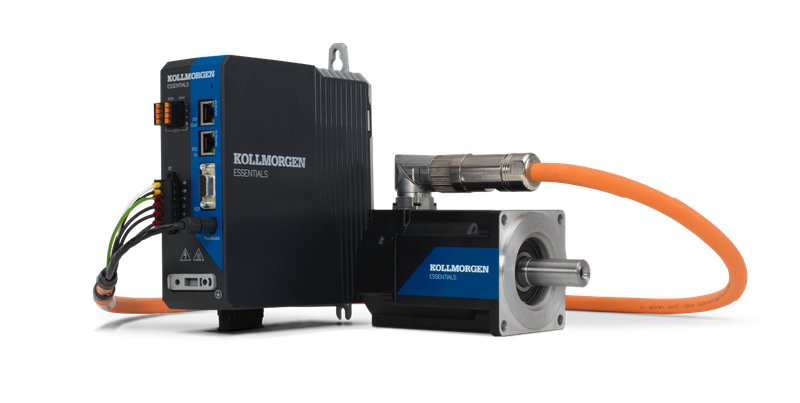

The Kollmorgen Essentials H2-51-015-A5-00-012000 is a 12-meter hybrid servo cable designed to integrate seamlessly with Kollmorgen Essentials servo motors and KED-series servo drives. As a member of the H2 Mid-flex Hybrid PUR cable family, it combines motor power, brake conductors, and SFD-M/SFD3 absolute encoder feedback into a single high-performance assembly—reducing wiring complexity and maximizing system reliability.
Built with 1.5 mm² power conductors, high-quality shielding, and a robust PUR jacket, this cable is rated for 1000 V, resists oils and industrial contaminants, and delivers a dynamic flex life exceeding 12 million cycles. The motor-side A5 M23 SpeedTec connector ensures perfect compatibility with Kollmorgen KEM, AKM, and AKM2G motors using SFD-M or SFD3 feedback devices.
Connector type 51 ensures proper drive-side interface with KED-SPM-6V03S and KED-SPM-6V06S servo drives. With integrated shielding across all conductors—including motor phases (U/V/W), brake leads, protective earth, and absolute encoder feedback—the cable delivers excellent EMC performance and reliable long-distance signal integrity.
The length identifier 012000 designates a 12-meter (12,000 mm) cable. The assembly meets global industrial standards including UL/ULC, NFPA 79, CE, and CEI 20-35 flame resistance, and is lead-free, silicone-free, oil-resistant, and clean-room compatible.
Designed for long-travel axes and extended cable runs, the H2-51-015-A5-00-012000 is a durable, plug-and-play hybrid solution for Kollmorgen Essentials motion systems.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | H2-51-015-A5-00-012000 |
| Cable Family | H2 Mid-flex Hybrid PUR (motor + brake + feedback) |
| Drive Compatibility | KED-SPM-6V03S, KED-SPM-6V06S |
| Motor Connector Type | A5 — M23 SpeedTec |
| Power Conductor Size | 1.5 mm² |
| Cable Outer Diameter | 13.2 mm |
| Minimum Bend Radius (Static) | 66 mm |
| Minimum Bend Radius (Dynamic) | 92.4 mm |
| Length | 12 meters |
| Weight | 4.80 kg (10.58 lb) (0.40 kg per meter × 12) |
| Voltage Rating | 1000 V |
| Temperature Rating | −40°C to +90°C (flexing) |
| Flex Life | 12,000,000 cycles |
| Certifications | CE, UL/ULC, NFPA 79, CEI 20-35 flame resistant, oil-resistant, silicone-free, clean-room approved |
