H2-51-015-A5-00-001000 Kollmorgen Essentials Motor and Drive Cable - 1 Meter

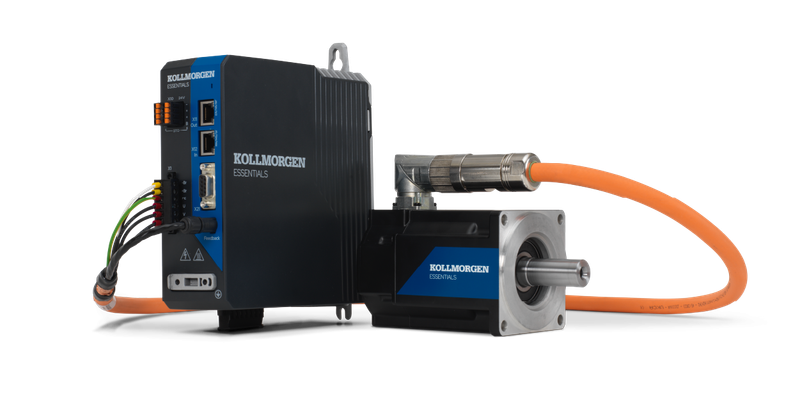

The Kollmorgen Essentials H2-51-015-A5-00-001000 is a 1-meter hybrid servo motor cable designed specifically for. As part of the H2 Mid-flex PUR cable family, this cable combines motor power, brake wiring, and absolute feedback communication into one high-performance, shielded assembly—ensuring superior signal integrity and long-term motion reliability.



Built with 1.5 mm² power conductors, the cable is protected by a robust PUR jacket rated for 1000 V, 80°C operating temperature, and a flex life exceeding 12 million cycles. The motor-side connector uses the A5 M23 SpeedTec interface, making it fully compatible with Essentials servo motors as well as AKM and AKM2G motors equipped for SFD-M or SFD3 feedback.



Connector type 51 ensures proper drive-side compatibility with KED-SPM-6V03S and KED-SPM-6V06S servo drives. The hybrid construction includes three motor phases (U/V/W), brake leads, protective earth, and differential SFD encoder communication—reducing cabling complexity and improving EMC performance.



The 001000 length code indicates the cable is 1 meter, following Kollmorgen’s standardized mm-length nomenclature. This cable is certified to NFPA 79, UL/ULC, CE, is clean-room approved, oil-resistant, lead-free, silicone-free, and meets CEI 20-35 flame resistance requirements.



Engineered for rugged motion applications, this cable is the recommended choice when reliability, low noise, and long service life are essential.

Key Technical Specifications
