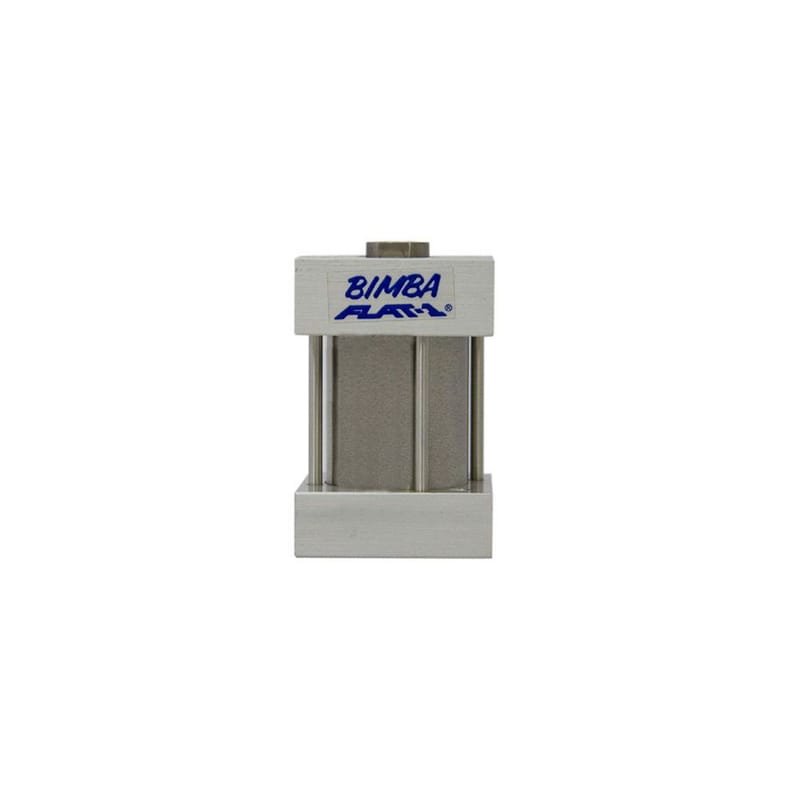

FS-090.5 Bimba Square Flat-1 Cylinder

Sku#: FS-090.5

Contact us for availability.
The Bimba FS-090.5 square flat-1 cylinder has a 1 1/6" bore size and a .5" stroke. The FS-090.5 is a double acting cylinder and comes with standard O-ring seals.

Bimba Square Flat-1® series cylinders are a convenient alternative for horizontal and side mounting, with provisions for both bottom flush, or face mounting.  This design also minimizes the centerline distance when cylinders are mounted side by side.  With a variety of stroke lengths and options available, you can customize these cylinders to your application needs.

  • Bore sizes:  3/4", 1-1/16", 1-1/2", 2", 2-1/2", 3", 4"
  • 304 stainless steel body prevents corrosion
  • Standard oil impregnated bronze rod bushing
  • Stainless piston rod
  • Precision machined anodized aluminum heads
  • Maximum Pressure:  150 PSI (air only)
