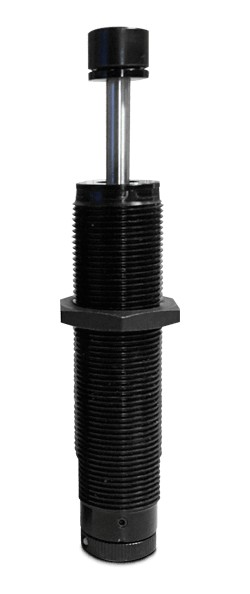

ECO OEM .15MB Enidine Adjustable Hydraulic Shock Absorber, M12 x 1.0 Thread, 10.0 mm Stroke, Button

The Enidine ECO OEM .15MB is an adjustable hydraulic shock absorber with an M12 x 1.0 mounting thread and 0.38 in (10.0 mm) stroke, button model.

Enidine ECO OEM Series adjustable hydraulic shock absorbers suit applications where input parameters vary or are not clearly defined. Turning the adjustment knob changes the damping force to accommodate a wide range of conditions, and the numbered setting can be locked. The ECO OEM Series is an expansion of the ECO product line in a RoHS compliant package.

Specifications:

Manufacturer:	Enidine
Model:	ECO OEM .15MB
Enidine part number:	BM24052
Series:	ECO OEM
Type:	Adjustable hydraulic shock absorber
Mounting thread:	M12 x 1.0
Button:	Yes
Stroke:	0.38 in (10.0 mm)
Optimal velocity range:	12-130 in/s (0.3-3.30 m/s)
Max. energy per cycle:	62 in-lbs/cycle (7.0 Nm/cycle)
Max. energy per hour:	185,000 in-lbs/hour (20 900 Nm/hour)
Max. reaction force:	200 lbs (890 N)
Nominal coil spring force, extended:	0.8 lbs (3.5 N)
Nominal coil spring force, compressed:	1.7 lbs (7.5 N)
Max. propelling force:	80 lbs (350 N)
Weight:	2 oz (56 g)

• One hex jam nut is included with every shock absorber.
• (B) indicates a button model. Buttons cannot be added to non-button models or removed from button models (OEM .1M to OEM 1.0M).
• All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.21).
