ECO OEM 1.0MF Enidine Adjustable Hydraulic Shock Absorber, M25 x 1.5 Thread, 25.0 mm Stroke

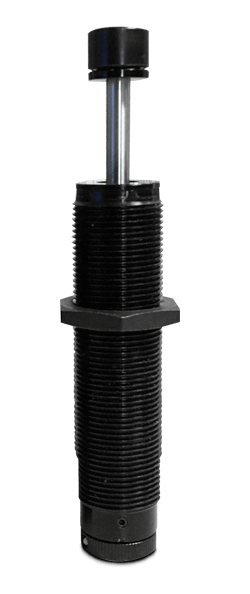

The Enidine ECO OEM 1.0MF is an adjustable hydraulic shock absorber with an M25 x 1.5 mounting thread and 1.00 in (25.0 mm) stroke.

Enidine ECO OEM Series adjustable hydraulic shock absorbers suit applications where input parameters vary or are not clearly defined. Turning the adjustment knob changes the damping force to accommodate a wide range of conditions, and the numbered setting can be locked. The ECO OEM Series is an expansion of the ECO product line in a RoHS compliant package.

Specifications:

Manufacturer:	Enidine
Model:	ECO OEM 1.0MF
Enidine part number:	MU24059
Series:	ECO OEM
Type:	Adjustable hydraulic shock absorber
Mounting thread:	M25 x 1.5
Stroke:	1.00 in (25.0 mm)
Optimal velocity range:	12-130 in/s (0.3-3.30 m/s)
Max. energy per cycle:	715 in-lbs/cycle (81.0 Nm/cycle)
Max. energy per hour:	681,000 in-lbs/hour (77 000 Nm/hour)
Max. reaction force:	1,000 lbs (4 400 N)
Nominal coil spring force, extended:	3.0 lbs (13.0 N)
Nominal coil spring force, compressed:	6.0 lbs (26.0 N)
Max. propelling force:	300 lbs (1 330 N)
Weight:	10 oz (285 g)

• One hex jam nut is included with every shock absorber.
• All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.21).
