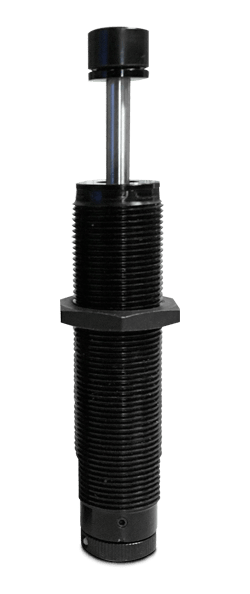

ECO LROEM .5MB Enidine Adjustable Hydraulic Shock Absorber, M20 x 1.5 Thread, 12.7 mm Stroke, Button

The Enidine ECO LROEM .5MB is an adjustable hydraulic shock absorber with an M20 x 1.5 mounting thread and 0.50 in (12.7 mm) stroke, button model.

Enidine ECO OEM Series adjustable hydraulic shock absorbers suit applications where input parameters vary or are not clearly defined. Turning the adjustment knob changes the damping force to accommodate a wide range of conditions, and the numbered setting can be locked. The ECO OEM Series is an expansion of the ECO product line in a RoHS compliant package.

Specifications:

Manufacturer:	Enidine
Model:	ECO LROEM .5MB
Enidine part number:	MB24058
Series:	ECO LROEM
Type:	Adjustable hydraulic shock absorber
Mounting thread:	M20 x 1.5
Button:	Yes
Stroke:	0.50 in (12.7 mm)
Optimal velocity range:	3-50 in/s (0.08-1.30 m/s)
Max. energy per cycle:	275 in-lbs/cycle (31.0 Nm/cycle)
Max. energy per hour:	311,000 in-lbs/hour (35 200 Nm/hour)
Max. reaction force:	775 lbs (3 500 N)
Nominal coil spring force, extended:	2.0 lbs (8.9 N)
Nominal coil spring force, compressed:	3.8 lbs (17.0 N)
Max. propelling force:	250 lbs (1 120 N)
Weight:	5 oz (141 g)

• One hex jam nut is included with every shock absorber.
• (B) indicates a button model. Buttons cannot be added to non-button models or removed from button models (OEM .1M to OEM 1.0M).
• All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.21).
