ECO LROEM 1.15M X 1 Enidine Adjustable Hydraulic Shock Absorber, M33 x 1.5 Thread, 25.0 mm Stroke

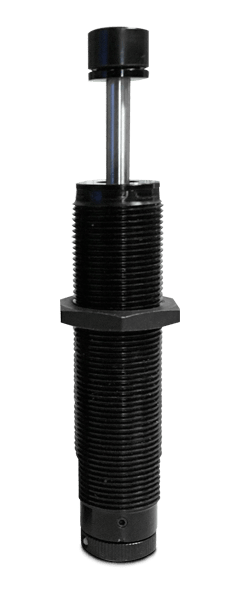

The Enidine ECO LROEM 1.15M X 1 is an adjustable hydraulic shock absorber with an M33 x 1.5 mounting thread and 1.00 in (25.0 mm) stroke.

Enidine ECO OEM Series adjustable hydraulic shock absorbers suit applications where input parameters vary or are not clearly defined. Turning the adjustment knob changes the damping force to accommodate a wide range of conditions, and the numbered setting can be locked. The ECO OEM Series is an expansion of the ECO product line in a RoHS compliant package.

Specifications:

Manufacturer:	Enidine
Model:	ECO LROEM 1.15M X 1
Enidine part number:	MF24106
Series:	ECO LROEM
Type:	Adjustable hydraulic shock absorber
Mounting thread:	M33 x 1.5
Stroke:	1.00 in (25.0 mm)
Optimal velocity range:	3-80 in/s (0.08-2.0 m/s)
Max. energy per cycle:	1,900 in-lbs/cycle (215.0 Nm/cycle)
Max. energy per hour:	237,000 in-lbs/hour (83 300 Nm/hour)
Max. reaction force:	2,500 lbs (11 120 N)
Nominal coil spring force, extended:	12.5 lbs (56.0 N)
Nominal coil spring force, compressed:	20.0 lbs (89.0 N)
Max. propelling force:	750 lbs (3 335 N)
Weight:	17 oz (482 g)

• All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.24).
