ECO LROEM 1.0MFB Enidine Adjustable Hydraulic Shock Absorber, M25 x 1.5 Thread, 25.0 mm Stroke, Button
Sku#: ECO LROEM 1.0MFB
Contact us for availability.
Details
More Information
Reviews

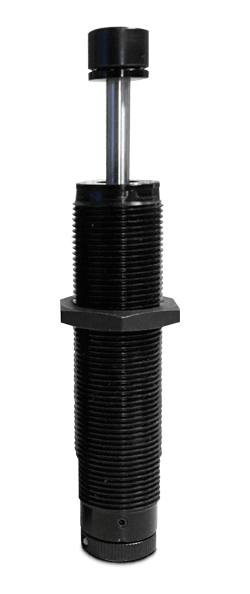

The Enidine ECO LROEM 1.0MFB is an adjustable hydraulic shock absorber with an M25 x 1.5 mounting thread and 1.00 in (25.0 mm) stroke, button model.
Enidine ECO OEM Series adjustable hydraulic shock absorbers suit applications where input parameters vary or are not clearly defined. Turning the adjustment knob changes the damping force to accommodate a wide range of conditions, and the numbered setting can be locked. The ECO OEM Series is an expansion of the ECO product line in a RoHS compliant package.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO LROEM 1.0MFB |
| Enidine part number: | BM24060 |
| Series: | ECO LROEM |
| Type: | Adjustable hydraulic shock absorber |
| Mounting thread: | M25 x 1.5 |
| Button: | Yes |
| Stroke: | 1.00 in (25.0 mm) |
| Optimal velocity range: | 3-50 in/s (0.08-1.30 m/s) |
| Max. energy per cycle: | 715 in-lbs/cycle (81.0 Nm/cycle) |
| Max. energy per hour: | 681,000 in-lbs/hour (77 000 Nm/hour) |
| Max. reaction force: | 1,000 lbs (4 400 N) |
| Nominal coil spring force, extended: | 3.0 lbs (13.0 N) |
| Nominal coil spring force, compressed: | 6.0 lbs (27.0 N) |
| Max. propelling force: | 450 lbs (2 016 N) |
| Weight: | 10 oz (285 g) |
- One hex jam nut is included with every shock absorber.
- (B) indicates a button model. Buttons cannot be added to non-button models or removed from button models (OEM .1M to OEM 1.0M).
- All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.21).
