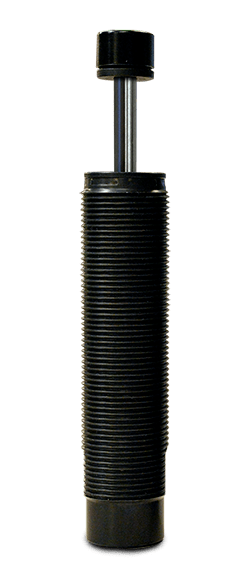

ECO 50 IF-2 Enidine Non-Adjustable Hydraulic Shock Absorber, 3/4-16 Thread, 0.88 in Stroke
Sku#: ECO 50 IF-2
Contact us for availability.
Details
More Information
Reviews
The Enidine ECO 50 IF-2 is a non-adjustable hydraulic shock absorber with a 3/4-16 mounting thread, 0.88 in (22.0 mm) stroke and damping constant -2.
Enidine ECO Series non-adjustable hydraulic shock absorbers are tamperproof, giving consistent performance cycle after cycle, and are designed to absorb maximum energy within a compact envelope. The ECO Series is designed with materials and fluids that are safe for the environment and accommodates a wide range of operating conditions, from low velocity/high drive force to high velocity/low drive force.
Specifications:
| Manufacturer: | Enidine |
| Model: | ECO 50 IF-2 |
| Enidine part number: | EF238442 |
| Series: | ECO |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | 3/4-16 |
| Damping constant: | -2 |
| Stroke: | 0.88 in (22.0 mm) |
| Max. energy per cycle: | 550 in-lbs/cycle (62.0 Nm/cycle) |
| Max. emergency energy per cycle: | 975 in-lbs/cycle (110 Nm/cycle) |
| Max. energy per hour: | 523,000 in-lbs/hour (59 070 Nm/hour) |
| Max. reaction force: | 850 lbs (3 750 N) |
| Nominal coil spring force, extended: | 2.0 lbs (8.9 N) |
| Nominal coil spring force, compressed: | 6.8 lbs (30.0 N) |
| Max. propelling force: | 360 lbs (1 600 N) |
| Weight: | 4.8 oz (136 g) |
- One hex jam nut is included with every shock absorber.
- The emergency energy rating is for emergency use only; Enidine estimates a cycle life of 1-5 cycles if used at the maximum emergency rating.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.47).
